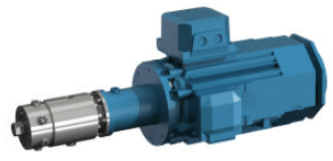

The Type X30 hydraulic axial piston pump is of a 30 kW rotating swash plate design and can deliver pressures up to 870 bar.

To suit your fluid compatibility, environment, maintenance and value requirements, these pumps are available with all stainless steel or all carbon steel external components.

The X30 pump is available with 3 or 6 pistons, providing flow rates up to 33.44 l/m (8.83 USg/m).
Features
  • Rotating swash plate design
  • Pressures up to psi: 12,620 (kPa: 87,000, bar: 870)
  • Flows up to 33.44 l/m (8.83 USg/m)
  • Horizontal or vertical mounting

Specifications

BSP Inlet

  • 1” BSP Female

BSP Outlet

  • 1/2” BSP Female

Cone & Thread Connection

  • 1” Female Medium Pressure
  • 9/16” Female Medium Pressure

Enclosure, Body Material

  • Carbon Steel
  • Stainless Steel

NPT Inlet

  • 1” NPT Female

NPT Outlet

  • 1/2” NPT Female
  • 3/4” NPT Female
