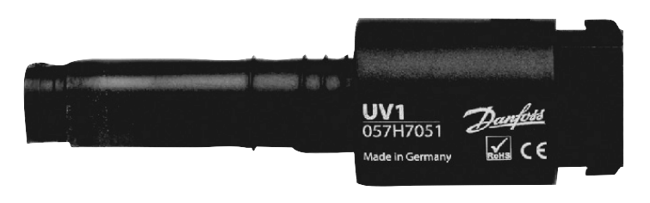

Danfoss Ultraviolet Flame Sensor, UV1

UV Ultraviolet Flame Sensor

Brand: Danfoss
Add Product to My Catalog

Danfoss UV sensors are used to detect the flame in blue flame oil burners. They are intended for use together with Danfoss controls in the OBC 80 and BHO 70 series.

The UV sensors meet the requirements of the EN230:2005 standard and also meets the requirements of the RoHS and WEEE Directives.

1 - 5 of 5 Part Numbers
057H1040
057H1040
  • Model - 300 mm Cable
057H1041
057H1041
  • Model - 400 mm Cable
057H1042
057H1042
  • Model - 500 mm Cable
057H7051
057H7051
  • Model - UV1 - Normal Sensitivity
057H7061
057H7061
  • Model - Flange
1 - 5 of 5 Part Numbers

View_Details

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F), Short Time Operation up to 75° C (167° F) - Operation
  • -30° to 70° C (-22° to 158° F) - Transport

Approvals & Certifications

  • EN 230: 2005
  • CE
  • RoHS
  • WEEE

Cable Length

  • 0.98 to 1.64 feet (0.3 to 0.5 Meter)

Current

  • Signal for No Light: 5 µA, Max.

Electrical Connectors

  • Wire (Brown: 230 V Mains, Blue: Neutral, Black: Signal)

Environmental Protection

  • IP40

Mounting

  • Flange Mount
  • Pipe

Output

  • Maximum
  • Recommended Min. Signal Output: 65 µA

Power Requirement

  • 230 V, 50/60 Hz, 0.3 VA

Sensitivity

  • Maximum

Documentation

Data Sheets
