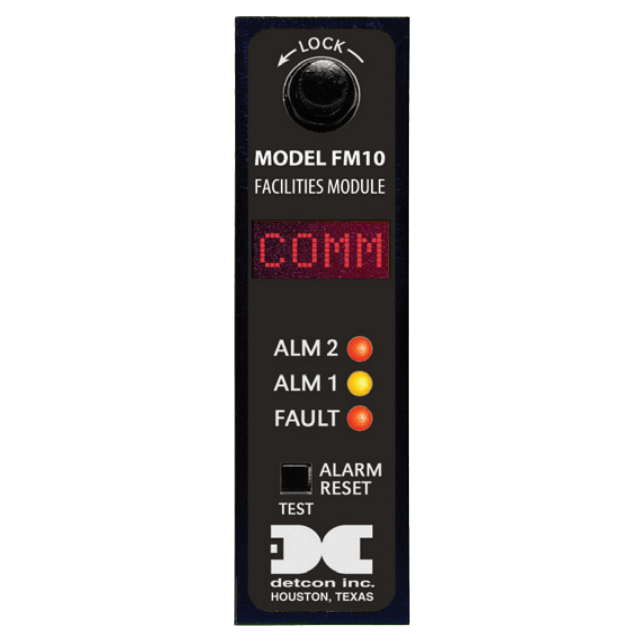

FM10 Facilities Module
Brand: Detcon IncModel FM-10 Facilities Module is designed for use with fire and gas detection systems utilizing Detcon Model Series 10 control cards.
The Facilities Module provides common alarm outputs, a master alarm reset/acknowledge switch, displays and reports system fault conditions, and most importantly serves as a single RS-485 address where the complete system status can be polled very efficiently and quickly.
Model FM-10 can be configured to supervise up to 32 Detcon Model Series 10 control cards.
In some applications the Facilities Module can be used to divide a high-density system into zones. For example, a system with 192 single control cards could be divided into 6 forty-channel areas.
Another configuration option may be zoning by function wherein an integrated combustible gas, toxic gas and fire detection system could utilize a Model FM-10 module for each safety monitoring category.
Features- Microprocessor Based Electronics
- Fully Scripted System Status Display
- Complete Fault Supervision and Reporting
- Single RS-485 Address for up to 32 Control Cards
- Common Alarm Reset/Acknowledge Switch
- Front panel initiated lamp test
Specifications
Brand
Communication
- RS-485 Modbus Communication Protocol
Display
- Front Panel LED
Electrical Contacts
- Form C
Electrical Rating
- 250 Vac at 5 A
- 30 Vdc at 5 A
Environmental Protection
- Non-Hazardous Area
Indication
- LED Indicators
Input Power
- 11-30 Vdc, 2.5 W, Max.
Operating Temperature
- -40° to 65° C (-40° to 149° F)
Relay Operation
- Fault & Alarm Relays
Relay Output
- 5 A at 30 Vdc
