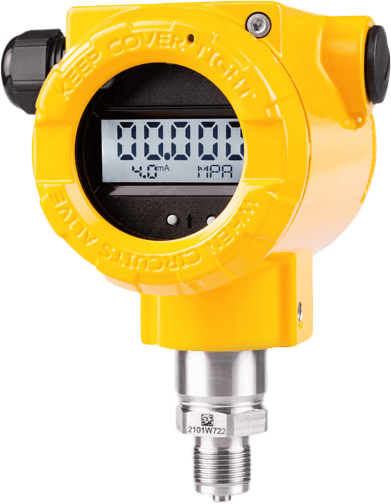

APC-2000ALW Smart Pressure Transmitter

Brand: Aplisens S.A.
Add Product to My Catalog

Features
  • 4…20 mA, 0…20 mA or 0…5 mA output signal + HART protocol
  • Display with backlight
  • Programmable range, zero shift, characteristic and damping ratio with local panel keys
  • SIL 2 certificate
  • Intrinsic safety certificate (ATEX, IECEx)
  • Explosion proof certificate (ATEX, IECEx)
  • Marine certificate – DNV, BV
  • PED Conformity 2014/68/EU
  • Accuracy 0.075% (0.05% on request)
  • Gold plated diaphragm (Au)
  • MID (Measuring Instruments Directive) – certificate acc. to 2004/22/WE directive and OIML R140:2007 recommendations

View_Details

Specifications

Brand

Communication

  • HART

Accuracy

  • ± 0.075 % of the Calibrated Range
  • Special Version: ± 0.05 % of the Calibrated Range

Measuring Range

  • Nominal -100 mbar to 1,000 bar
  • Nominal 0 to 300 bar abs

Thermal Error

  • < ± 0.05 % FSO /10° C
  • Maximum ± 0.25 % (FSO) in the Whole Compensation Range

Thermal Compensation Range

  • -40° to 80° C

Output Signal

  • 4-20 mA + HART

Wetted Material and Diaphragms

  • 316L Stainless Steel, Hastelloy C-276, Au

Case Material

  • Aluminum, 316 Stainless Steel

Window Material

  • Hardened Glass

Operating Temperature

  • -40° to 85° C

Medium Temperature Range

  • -40° to 120° C

Certifications & Approvals

  • ATEX
  • IECEx
  • FED
  • MID
  • SIL 2
  • cFMus
  • NACE MR-0175

Environmental Protection

  • IP67
  • IP66

Documentation

Data Sheets

Product Manuals

Catalogs

Certifications
