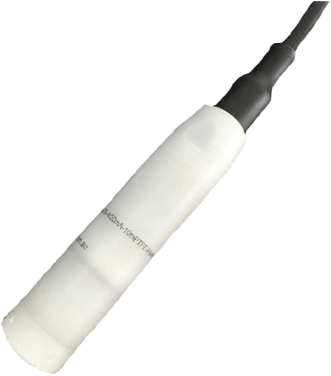

Corrosion Resistance Level Transmitter

Brand: Xi'an UTOP Measurement Instrument Co, Ltd

ULB7 Series Corrosion Resistance Level Transmitter are made by using imported high accuracy ceramic sensors.

Through precise structural design and temperature compensation, signal amplified and V/I transforming. Its PVDF material housing is full sealed design.

The cable of ULB7 is put in PTFE pipe, simultaneously with breathing pipe which makes sensor's back pressure intensity connect to atmosphere pressure. ULB7 Series Corrosion Resistance Level Transmitters are entire solid state products.

To assure ULB7 Corrosion Resistance Level Transmitter to have long life, all outside linking parts on housing and cables have been sealed.
Features
  • Anti-interference, good long-term stability
  • Suitable for corrosive media measurement like strong acid or strong alkali
  • PVDF housing, PTFE cable
  • Protection: IP68

Specifications

Measuring Ranges

  • 0 ~ 2 mH₂O...500 mH₂O

Overload Pressure

  • 200 % Full Scale

Output Signal

  • 4~20 mA, 0~5 V, 0~10 V, 1~5 V

Accuracy

  • 0.25 % Full Scale, 0.5 % Full Scale (Standard)

Supply Voltage

  • 12 ~ 36 Vdc

Compensated Temperature Range

  • -10° ~ 70° C

Storage Temperature Range

  • -40° to 100° C

Temperature Coefficient of Zero

  • 0.25 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.25 % Full Scale/10° C

Electrical Connection

  • Ø 9 mm Shielded Cable with Vent Hose (PTFE)

Material of Wetted Part and Housing

  • PVDF

Material of Pressure Membrane

  • Ceramic

  • ULB7 Corrosion Resistance Level Transmitter have been widely used for Static or Dynamic Level Measurement of Corrosive Liquids as Strong Acid or Strong Alkali etc in Refinery, Chemical Plant, Glass Factory, Sewage Treatment Plant and so on
