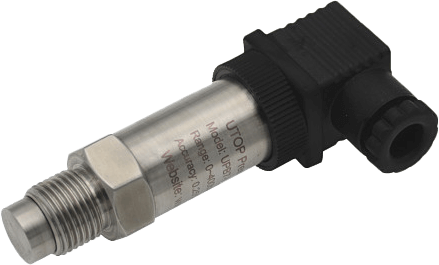

UPB7-b Flush Pressure Transmitter is made without cavity, but with flush diaphragm. The design of no cavity measuring diaphragm makes it especially suitable for measuring the viscous liquids.

The installation of this product adopts the advanced modified structure, make the product has a good aseismic capacity.

Using a variety of amplifier circuits with distinctive features, such as anti-jamming, high temperature resistant and explosion-proof etc, UPB7-b Flush Pressure Transmitter is used in a variety of work environments.

This strain gauge flush pressure transmitter is widely used in mud, cement, crude oil and other industries with granular fluid, as well as in measuring situations with high viscosity and easy crystallization.
Features
  • Range up to 1500 bar
  • Flush diaphragm structure
  • Anti-corrosion, anti-attrition, anti-impact
  • Suitable for the measurement of middle pressure and high pressure

Specifications

Pressure Medium

  • Gas or Liquid Compatible to 17-4 PH Stainless Steel

Pressure Ranges

  • 0 ~ 40...1500 bar

Overload Pressure

  • 150 % Full Scale

Output Signal

  • 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V

Accuracy

  • 0.25 % Full Scale (range lower 3000 bar)
  • 0.5 % Full Scale (range 3000 bar or higher)

Load Resistance

  • RL = (U-9 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)

Supply Voltage

  • 9 ~ 36 Vdc

Compensated Temperature Range

  • 0° ~ 70° C

Operating Temperature Range

  • -40° ~ 85° C (-40° ~ 120° C optional)

Temperature Coefficient of Zero

  • 0.25 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.25 % Full Scale/10° C

Process Connection

  • G1/4” or others

Electrical Connection

  • Hirschmann Connector or others

Material of Wetted Part

  • 17-4 PH

Material of Pressure Membrane

  • 17-4 PH

Material of Housing

  • 1Cr18Ni9Ti
