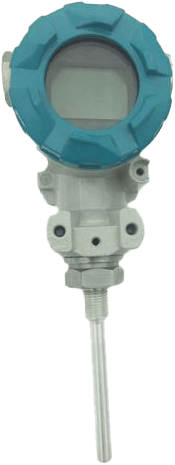

Temperature Transmitter With Indicator
Brand: Xi'an UTOP Measurement Instrument Co, LtdUTB9 temperature transmitter with indicator uses thermocouple or thermal resistor as temperature sensitive element, it can measure temperature of all kinds of liquid.
It transform thermocouple's or thermal resistance's signal to 4~20 mA standard signal, simultaneously has real-time indication function on the spot.
This temperature transmitter is the model with LCD or LED indicator. It uses integrated electric circuit, which guarantee its stable signal and clear display, this is very convenient to calibrate and inspect the gauges on the scene.
Features- Range: -200 ~1600℃
- High accuracy, anti-interference, good long-term stability
- Integrated structure, can display its real-time measuring value
Specifications
Measured Medium
- Gas or Liquid Compatible with Stainless Steel
Temperature Ranges
- Thermocouple: E, K, S, B
- Thermal Resistor: PT100, Cu50
Insert Depth
- 50 mm ~ 2000 mm (At Customer's Request)
Accuracy
- Thermal Resistor: 0.5 % Full Scale (Standard)
- Thermocouple: 0.75 % Full Scale
Output Signal
- 4 ~ 20 mA
Long-Term Stability
- 0.25 % Full Scale/year
Load Resistance
- RL(Max.) = (V-12)/0.02, V: Power Supply of Transmitter
Ambient Temperature Range
- -30° to +80° C
Display
- LCD or LED
Temperature Coefficient of Zero
- 0.2 % Full Scale/10° C
Temperature Coefficient of Span
- 0.2 % Full Scale/10° C
Process Connection
- G1/2” or others
Electrical Connection
- M20 x 1.5 (Female)
Material of Wetted Parts
- 1Cr18Ni9Ti Stainless Steel
Material of Housing
- Cast Aluminum
Protection
- IP65
- UTB9 Temperature Transmitter with Indicator has been Widely used in Chemical Industry, Petroleum Industry, Metallurgy Industry, Light Industry, Food, Electric Power, and Energy Management etc.
