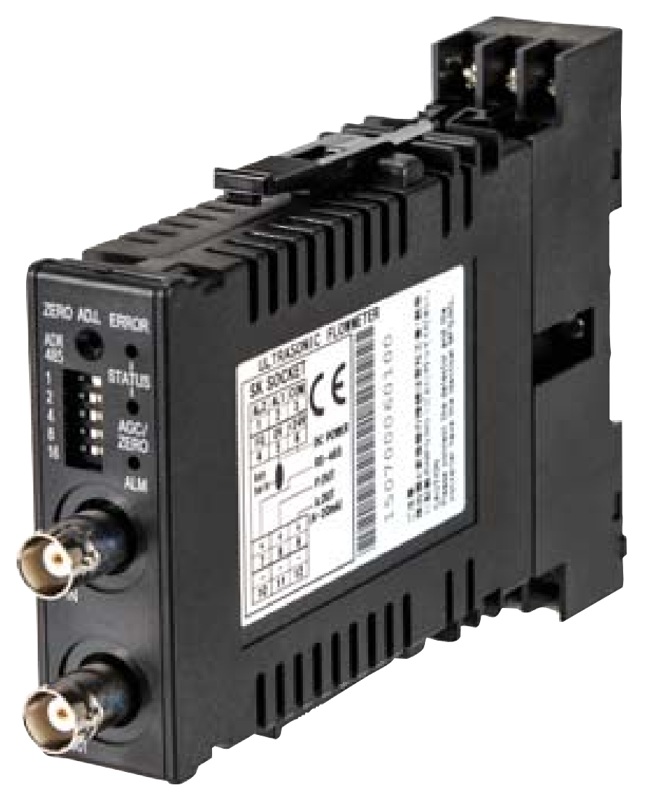

SFC3000 Converter for UCUF Ultrasonic Flowmeter.png

SFC3000 Converter for UCUF Ultrasonic Flowmeter

Brand: Tokyo Keiso Co, Ltd
Add Product to My Catalog

The UCUF series ultrasonic flowmeter is designed for measuring small flow rates of ultra-pure water and chemical liquids. All wet parts are made of special grade PFA molds and have no moving parts or sealing mechanism such as an O-ring which would accumulate liquid components. The simple and smooth construction leaves no residues and is ideal for processes such as semiconductor manufacturing which requires ultimate cleanliness.

The SFC3000 is a converter for UCUF series ultrasonic flowmeters. Using state-of-the-art technologies such as Digital Signal Processing, the converter has reduced significantly the adverse effects caused by the bubbles contained in semiconductor and chemical liquid handling processes.
Features
  • Enhanced resistance to bubbles
    • The conventional ultrasonic flowmeters used to have difficulties in measuring fluids containing bubbles because the bubbles disturb the propagation of ultrasound waves. By checking the received ultrasound waves and evaluating the effects of bubbles, the DSP technology and our accumulated field experiences have eliminated the abnormal output caused by bubbles. Thus the SFC3000 has improved significantly the resistance to bubbles by reviewing the signal processing method of the ultrasonic waves compared with the conventional models.
  • Compact design
    • Separated from the detector, the converter is compact and lightweight with a plug-in construction easy for wiring.
  • Cleared EMC test:
    • EN61326-1: 2013
    • EN61326-2-3: 2013
  • RoHS compatible
  • Liquids with kinematic viscosity of as high as 40 mm²/s can be measured
  • Detector with highly clean construction
  • Corrosion resistant and easy to install
  • Accuracy: Within ±1% of the reading at flow velocity of 1 m/s or more
  • Additional functions
    • Error detection
    • Self diagnosis
  • Simple parameter setting suitable for each measuring liquid

Specifications

Brand

Approvals & Certifications

  • CE
  • EMC - EN 61326-1: 2013, EN 61326-2-3: 2013
  • RoHS

Communication

  • Modbus
  • RS-485

Consumption

  • Approximately 100 mA (Approximately 200 mA at Start Up)

Enclosure, Body Material

  • ABS Resin (Black Color)

Environmental Protection

  • IP20 Indoor Use

Power Supply

  • 24 Vdc ± 10 %

Documentation

Data Sheets
