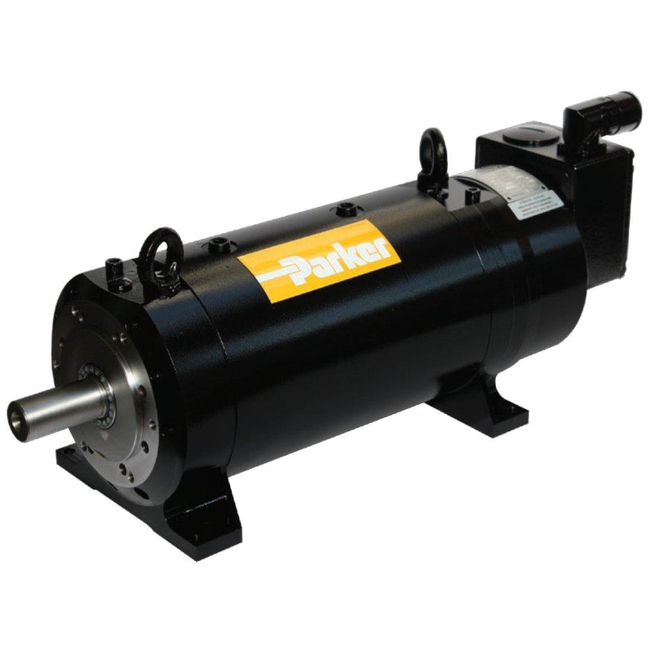

High-Speed Servo Motors for Test Rigs - MGV Series

Brand: Parker Hannifin

MGV motors are brushless synchronous servo motors with permanent magnets specially designed for test bench applications requiring compact and reliable solutions without compromising high performance.

For qualification process MGV motors can be used in many automotive or aeronautical component test rigs (diesel engine, starters, pumps, alternators, gearboxes...).

Highly responsive with exceptional dynamic performance, MGV motors are ideally suited to the needs of simulation testing: speed in urban cycle or motor racing, speed acyclism of an internal combustion engine, etc...
Features
  • High maximum speeds - avoid the need for mechanical gearing
  • Low inertia - allows very fast acceleration/deceleration
  • Constant power operation (field weakening mode) above nominal speed removes the requirement to oversize the drive
  • Water cooling - ensures compact size and low noise operation
  • High dynamic capabilities allow the operating conditions of the tested product to be accurately reproduced
  • Compactness

Specifications

Approvals & Certifications

  • CE Marked

Base Speed (rpm)

  • 3200 to 22000

Continuous Power Range

  • 15 to 500 KW

Continuous Torque (In/Lbs)

  • 60 to 13276

Continuous Torque (Nm)

  • 6.8 to 1500

Cooling Method

  • Water-Cooled

Feedback Device

  • Resolver

Frame Size

  • 430 / 635/840 / 860 / 950 / 966 / A50 / B40 / B50

Input Supply Voltage

  • 400 Vac

IP Protection Rating

  • IP40

Maximum Speed (rpm)

  • 5000 to 45000

Motor Pole Count

  • 4 (MGV4) / 6 (MGV6 / MGV8 / MGV9) / 8 (MGVA) / 16 (MGVB)

Parker Drive Compatibility

  • 890

  • Engine Testing
  • Components Testing
  • Powertrain Testing
  • Chassis Dynamometer
  • Electric or Hybrid Car
  • Battery Simulation
