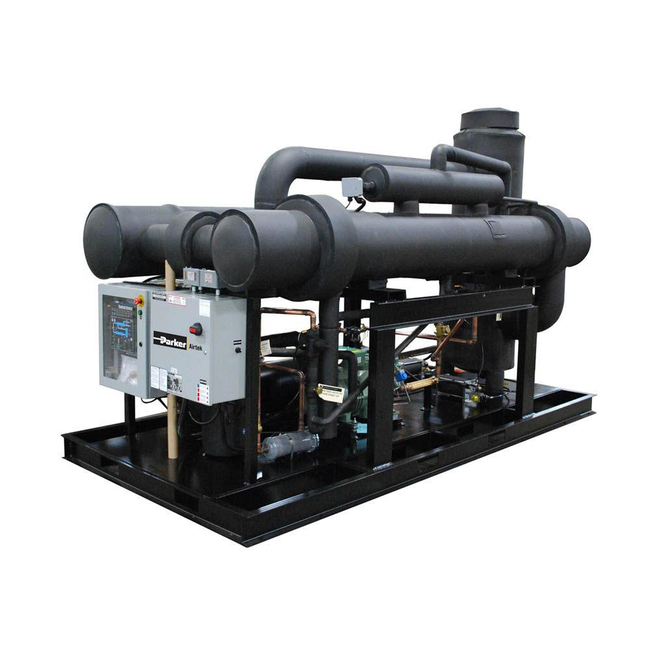

Magnum Series Cycling Refrigerated Air Dryers - MSC Series

Brand: Parker Hannifin

Parker Airtek's patented Magnum Series Cycling Refrigerated Air Dryers provide exceptional dewpoint control in a robust package.

All Magnum Series Cycling Refrigerated Air Dryers come equipped with Advanced Control Center Microprocessor, the most intuitive controller in the industry.

All functions and operations are managed by the Control Center, providing the user with a true "real time" interface allowing for total visibility of air quality condition.

Magnum Cycling Refrigerated Air Dryers are built for heavy industrial applications in mind using a heavy duty solid steel base, semi-hermetic multi-cylinder refrigeration compressors, ASME Code "U" stamped pressure vessels and low pressure drop designs.

Dewpoints from 33 - 39°F are maintained through Smart Cycles' unique control system allowing the starting and stopping of the refrigeration system in direct response to air quality and process usage.

Our new "Auto Mode" takes all the guesswork out of operations allowing Magnum Cycling Refrigerated Air Dryers to manage and control dryer performance, while maximizing energy savings.

All Magnum Cycling Refrigerated Air Dryers are provided serial ready with RS232 MODBUS port located on the Control Center microprocessor board.
Features
  • Thermal Bank System
  • Flood Level Control
  • High Efficiency Tube and Shell Heat Exchangers
  • Grooved Tube Sheets
  • Reliable Demand Drain
  • Thermal Bank System delivers cleaner and drier compressed air
  • Easily serviced main heat exchanger
  • Precise timing and programming, no “freeze-up” conditions
  • Improved performance (2X main evaporator surface area)
  • Simple, reliable, and non-fouling
  • Leak-proof joints
  • Greater mechanical strength and precision milled grooves in tube sheets

Specifications

After-Filter Part Number

  • Consult Factory

After-Filter Replacement Element

  • Consult Factory

Connection Type

  • 8” Flange, 10” Flange, 12” Flange

Depth (inch)

  • 68, 76, 83, 94, 100

Dryer Technology

  • Compressed Air Refrigerated

Height (inch)

  • 95, 111, 120

Installed Condensate Drain

  • Level Actuated

Maximum Ambient Temperature (°F)

  • 115° F

Maximum Flow Rate (m³/hr)

  • 6796.04, 8495.05, 10194.06, 13592.09, 16990.11, 21237.63, 25485.16

Maximum Operating Pressure (psi)

  • 150

Maximum Operating Temperature (°F)

  • 131° F

Minimum Ambient Temperature (°F)

  • 41° F

Minimum Operating Pressure (psi)

  • 50

Minimum Operating Temperature (°F)

  • 41° F

Pre-installed Optional Accessories

  • Air Cooled Unit

Prefilter Part Number

  • Consult Factory

Prefilter Replacement Element

  • Consult Factory

Rated Inlet Pressure (psi)

  • 100

Refrigerant

  • R404A

Type

  • Magnum Large Capacity Dryers – Air Cooled

Weight (Lbs)

  • 5680, 6415, 7725, 9610, 11020, 13250, 14600

Width (inch)

  • 108, 146, 161, 160, 150
