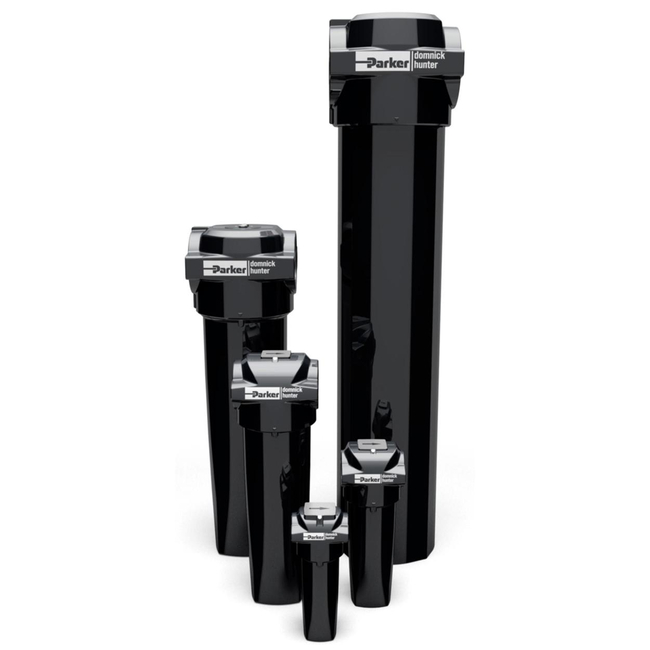

OIL-X Grade WS Compressed Air Water Separator (For Pressures up to 16 barg)

Brand: Domnick Hunter - by Parker

Bulk water which exists in all compressed air systems causes problems - corrosion of piping, permanent damage to valves, cylinders, pneumatic tools, machinery and reducing the effectiveness of aftercoolers/heat exchangers.

Over 99% of bulk water can be easily and economically removed by installing a Parker domnick hunter OIL-X Grade WS high efficiency water separator. Now, your compressed air system will operate much more efficiently with reduced downtime and maintenance costs. Grade WS technology will also improve the effectiveness of aftercoolers, refrigerant dryers, filters and other downstream equipment.
Features
  • The world’s most energy efficient water separators
  • For the removal of bulk condensed water and liquid oil
  • Used to protect coalescing filters from bulk liquid contamination
  • Tested in accordance with ISO8573-9

Specifications

Depth (inch)

  • 2.6 to 33.1

Depth (mm)

  • 66 to 840

Height (inch)

  • 7.09 to 63.4

Height (mm)

  • 180 to 1610

Materials of Construction

  • Die Cast Aluminum or Fabricated Carbon Steel

Maximum Flow Rate (cfm)

  • 21 to 14885 @ 100 psig

Maximum Operating Pressure (barg)

  • 16

Maximum Operating Pressure (psig)

  • 232

Maximum Operating Temperature (°C)

  • 80° C

Maximum Operating Temperature (°F)

  • 176° F

Minimum Operating Pressure (barg)

  • 1

Minimum Operating Pressure (psig)

  • 15

Minimum Operating Temperature (°C)

  • 2° C

Minimum Operating Temperature (°F)

  • 35° F

Weight (kg)

  • 0.61 to 675

Weight (Lbs)

  • 1.34 to 1488

Width (inch)

  • 2.99 to 39.4

Width (mm)

  • 76 to 1000
