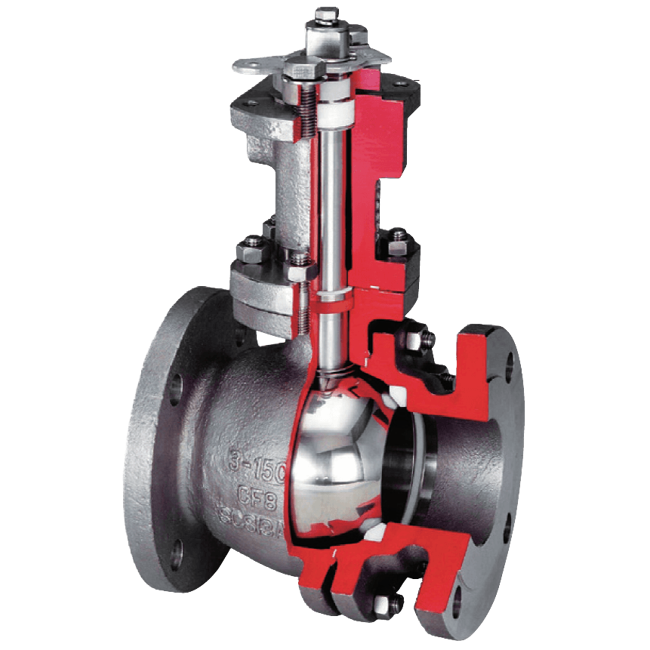

KTM Cryogenic Ball Valve

Low Temperature/Cryogenic Ball Valve

Brand: KTM
Add Product to My Catalog

KTM ball valves have been widely used in low temperature and cryogenic applications, including LNG (Liquefied Natural Gas) which is fast becoming a better alternative source of energy.
Features
  • Two types of extension bonnet lengths available to optimize the location of the gland packing at ambient temperature thus preventing freeze-damage by low temperature fluid
  • Cavity pressure self relief construction
  • Excellent seat and seal design minimizes leakage
  • Low operating torque for smooth operations
  • Fire safe design available for flammable applications
  • Fugitive emissions control for flammable and non-flammable applications
  • Rigid body construction to minimize thermal shrinkage

View_Details

Specifications

Brand

Approvals & Certifications

  • CE
  • PED

Direct Mount

  • No

Enclosure, Body Material

  • CF8, CF8M Stainless Steel
  • LBC, LCC (Carbon Steel)

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - 600#
  • 1-1/2” (DN 40) - JIS 10K
  • 1-1/2” (DN 40) - JIS 20K

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - 600#
  • 1” (DN 25) - JIS 10K
  • 1” (DN 25) - JIS 20K

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150#
  • 1/2” (DN 15) - 300#
  • 1/2” (DN 15) - 600#
  • 1/2” (DN 15) - JIS 10K
  • 1/2” (DN 15) - JIS 20K

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150#
  • 10” (DN 250) - 300#
  • 10” (DN 250) - 600#
  • 10” (DN 250) - JIS 10K
  • 10” (DN 250) - JIS 20K

Flange Size - 12” (DN 300)

  • 12” (DN 300) - 150#
  • 12” (DN 300) - 300#
  • 12” (DN 300) - 600#
  • 12” (DN 300) - JIS 10K
  • 12” (DN 300) - JIS 20K

Flange Size - 14” (DN 350)

  • 14” (DN 350) - 150#
  • 14” (DN 350) - 300#
  • 14” (DN 350) - 600#
  • 14” (DN 350) - JIS 10K
  • 14” (DN 350) - JIS 20K

Flange Size - 16” (DN 400)

  • 16” (DN 400) - 150#
  • 16” (DN 400) - 300#
  • 16” (DN 400) - 600#
  • 16” (DN 400) - JIS 10K
  • 16” (DN 400) - JIS 20K

Flange Size - 18” (DN 450)

  • 18” (DN 450) - 150#
  • 18” (DN 450) - 20K
  • 18” (DN 450) - 300#
  • 18” (DN 450) - 600#
  • 18” (DN 450) - JIS 10K

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - 300#
  • 2-1/2” (DN 65) - 600#
  • 2-1/2” (DN 65) - JIS 10K
  • 2-1/2” (DN 65) - JIS 20K

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - 600#
  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - JIS 20K

Flange Size - 20” (DN 500)

  • 20” (DN 500) - 150#
  • 20” (DN 500) - 300#
  • 20” (DN 500) - 600#
  • 20” (DN 500) - JIS 10K
  • 20” (DN 500) - JIS 20K

Flange Size - 22” (DN 550)

  • 22” (DN 550) - 150#
  • 22” (DN 550) - 300#
  • 22” (DN 550) - 600#
  • 22” (DN 550) - JIS 10K
  • 22” (DN 550) - JIS 20K

Flange Size - 24” (DN 600)

  • 24” (DN 600) - 150#
  • 24” (DN 600) - 300#
  • 24” (DN 600) - 600#
  • 24” (DN 600) - JIS 10K
  • 24” (DN 600) - JIS 20K

Flange Size - 26” (DN 650)

  • 26” (DN 650) - 150#
  • 26” (DN 650) - 300#
  • 26” (DN 650) - 600#
  • 26” (DN 650) - JIS 10K
  • 26” (DN 650) - JIS 20K

Flange Size - 28” (DN 700)

  • 28” (DN 700) - 150#
  • 28” (DN 700) - 300#
  • 28” (DN 700) - ASME Class 600#
  • 28” (DN 700) - JIK 10K
  • 28” (DN 700) - JIS 20K

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 300#
  • 3” (DN 80) - 600#
  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - JIS 20K

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150#
  • 3/4” (DN 20) - 300#
  • 3/4” (DN 20) - 600#
  • 3/4” (DN 20) - JIS 10K
  • 3/4” (DN 20) - JIS 20K

Flange Size - 30” (DN 750)

  • 30” (DN 750) - 150#
  • 30” (DN 750) - 300#
  • 30” (DN 750) - 600#
  • 30” (DN 750) - JIS 10K
  • 30” (DN 750) - JIS 20K

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 300#
  • 4” (DN 100) - 600#
  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - JIS 20K

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150#
  • 5” (DN 125) - 300#
  • 5” (DN 125) - 600#
  • 5” (DN 125) - JIS 10K
  • 5” (DN 125) - JIS 20K

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#
  • 6” (DN 150) - 300#
  • 6” (DN 150) - 600#
  • 6” (DN 150) - JIS 10K
  • 6” (DN 150) - JIS 20K

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150#
  • 8” (DN 200) - 300#
  • 8” (DN 200) - 600#
  • 8” (DN 200) - JIS 10K
  • 8” (DN 200) - JIS20K

Flange Type

  • Raised Face (RF)
  • Smooth Finish (63 to 125 AARH)

Maximum Sensor, Probe Temperature

  • -196° C (-321° F)

Media

  • Air
  • Gas
  • Liquified Natural Gas (LNG)

Port

  • Full

Seat / Seal Material

  • PTFE
  • PTFE / PFA Copolymer
  • RPTFE

Valve Type

  • Manual

  • Liquefied Natural Gas (LNG)
