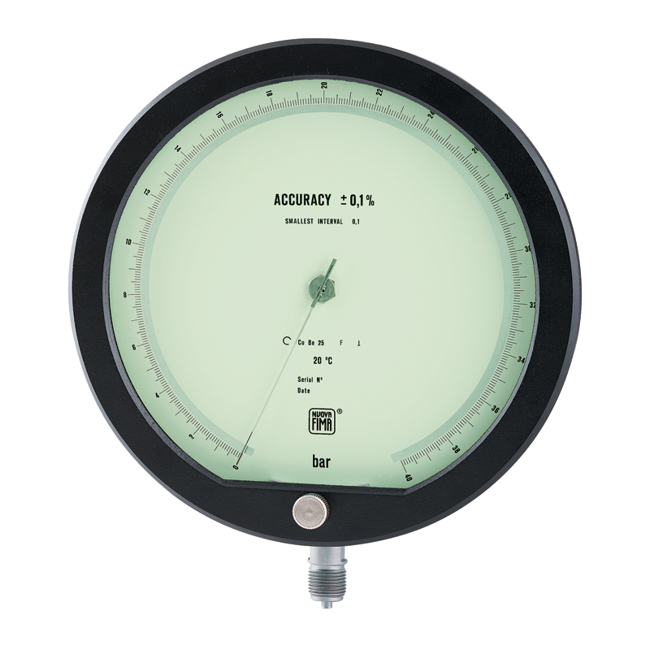

MN17/L DN250 Laboratory Pressure Gauge
Brand: Nuova FimaThese instruments have been designed for use as in laboratories, instrument testing or recalibration facilities or in applications where accuracy and repeatability are of prime importance.
They can be used with gaseous or liquid media which do not corrode copper alloy and which do not have high viscosity nor crystallize.
Each instruments is delivered with a Nuova Fima calibration report, who guarantee traceability to the national and international primary master of pressure measurements.
Upon request we can supply the calibration certificate issued by an Internationally recognized laboratory of ACCREDIA (Ex S.I.T. - Italian Calibration Service).
Specifications
Brand
Accuracy Class
- 0,1 as Per EN 837-1, for Ranges ≤ 8700 psi (600 bar)
- 0,25 as Per EN 837-1, for Ranges > 8700 psi (600 bar)
Ambient Temperature Range
- +50° to +140° F (+10° to +60° C)
Bourdon Tube
- Beryllium Copper Alloy
Calibration Temperature
- 68° F (+20° C)
Case
- Aluminum Black Painted
Design
- EN 837-1
Dial
- Aluminum, Green with Black Markings & Anti-Parallax Mirror Band
IP Protection Rating
- IP44 as Per EN 60529 / IEC 529
Movement
- High Precision
Overpressure Limit
- Not Suitable
Pointer
- Balanced, Knife-Edge Micrometer
Process Fluid Temperature
- 68° F (+20° C)
Ring
- Aluminum Black Painted
Safety Designation
- S1 as Per EN 837-2
Scale Amplitude
- 310°
Socket Material
- AISI 316L Stainless Steel
Thermal Drift
- ± 0.04 % / 10 K of Range (Starting from 68° F / 20° C)
Window Material
- Plastic
Working Pressure
- Maximum
Zero Calibration
- External, Manual
