AHMO Test Blocks

Brand: Kern

Features
  • AHMO D External impact sensor Type D (without cable)
  • AHMO D01 Impact Body Type D
    • Hardness ≥ 1600 HV
    • Material: Tungsten Carbide
    • Impact ball Ø 3 mm, in accordance with the standard ASTM A956-02
  • AHMO D02 Test block Type D/DC, hardness range 790 ± 40 HL
    • Accuracy ≥ 4 HL
    • Ø 90 mm (1 mm)
    • Net weight approx. 2.5 kg
  • AHMO D03 Test block Type D/DC, hardness range 630 ± 40 HL
    • Accuracy ≥ 4 HL
    • Ø 90 mm (1 mm)
    • Net weight approx. 2.7 kg
  • AHMO D04 Test block Type D/DC, hardness range 530 ± 40 HL
    • Accuracy ≥ 4 HL
    • Ø 90 mm (1 mm)
    • Net weight approx. 2.7 kg
  • AHMO DC External impact sensor Type DC
    • Short impact sensor for tests in holes or hollowed objects

1 - 6 of 6 Part Numbers

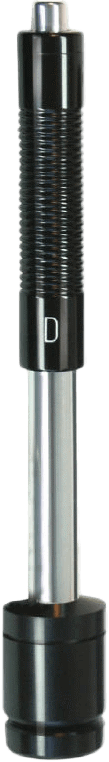

AHMO D
AHMO D
External Impact Sensor Type D (Without Cable)
  • For Metal Hardness Testers
AHMO D01
AHMO D01
Impact Body Type D
  • Hardness: ≥1600 HV
  • Material: Tungsten Carbide

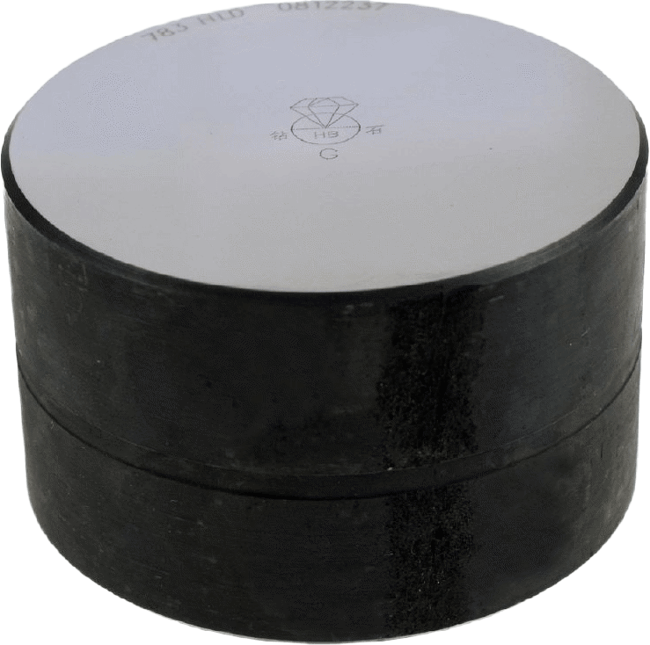

AHMO D02
AHMO D02
Test Block D / DC
  • Hardness Range: 790 ± 40 HL
AHMO D03
AHMO D03
Test Block D / DC
  • Hardness Range: 630 ± 40 HL
AHMO D04
AHMO D04
Test Block D / DC
  • Hardness Range: 530 ± 40 HL

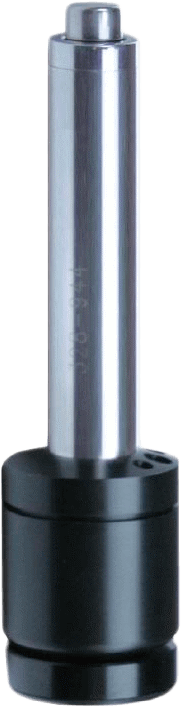

AHMO DC
AHMO DC
External Impact Sensor Type DC
  • For Metal Hardness Meters
1 - 6 of 6 Part Numbers

Specifications

Brand

Dimensions Housing (W×D×H)

  • 32 mm x 8 mm x 8 mm
  • 90 mm x 90 mm x 52 mm

Overall Dimensions Mounted (W×D×H)

  • 32 mm x 8 mm x 8 mm
  • 90 mm x 90 mm x 52 mm
