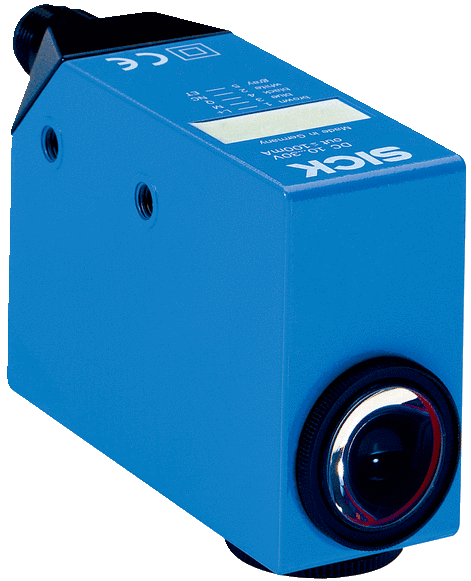

CS8 Color Sensor

Brand: Sick AG
Add Product to My Catalog

The ability to teach up to four colors can lead to faster changeovers and shorter downtime.

The CS8 series offers high switching speeds – as fast as 6 kHz (85 µsec) – enabling higher throughput.

And, the sensor maintains the extreme precision of the lightspot; this sharp, well-defined spot provides tighter process control and more consistent object detection.

A bar graph display enables easy setup and provides information about the color quality and detection reliability.
Features
  • Identify and store up to four colors. No need to reprogram the sensor for changeovers, reducing downtime.
  • High resolution colors can be matched exactly for better process reliability
  • Maintains the extreme precision of the light spot, enabling a consistent object detection
  • A bar graph display provides information about the color quality and detection reliability, ensuring simple process monitoring
  • Broad spectrum of color tolerances enables more flexible use
  • Fast response times at high speeds for reliable detection
  • Detection reliability is not affected by varying temperatures

1 - 5 of 5 Part Numbers
1028225
1028225
  • Sensing Range - Max. 12.5 mm
  • Switching Output - PNP
  • Connection Type - Male Connector M12, 5-Pin
  • Type - CS81-P3612
1028227
1028227
  • Sensing Range - Max. 12.5 mm
  • Switching Output - PNP
  • Connection Type - Male Connector M12, 8-Pin
  • Type - CS84-P3612
1028229
1028229
  • Sensing Range - Max. 12.5 mm
  • Switching Output - NPN
  • Connection Type - Male Connector M12, 5-Pin
  • Type - CS81-N3612
1028231
1028231
  • Sensing Range - Max. 12.5 mm
  • Switching Output - NPN
  • Connection Type - Male Connector M12, 8-Pin
  • Type - CS84-N3612
1054795
1054795
  • Sensing Range - Max. 60 mm
  • Switching Output - PNP
  • Ligh Spot Size - 13 mm x 13 mm
  • Connection Type - Male Connector M12, 5-Pin
  • Type - CS81-P3612S02
1 - 5 of 5 Part Numbers

View_Details

Specifications

Brand

Sensing Distance

  • 12.5 mm
  • 60 mm

Light Spot Size

  • 2 mm x 4 mm

Switching Frequency

  • 1 kHz / 3 kHz / 6 kHz / 0.5 kHz / 1 kHz / 3.5 kHz

Response Time

  • 85 to 1,000 µs

Output (Channel)

  • 1 color / 4 colors

Adjustment

  • Static 1-Point Teach-in

Connection Type

  • Male Connector

Switching Output

  • PNP
  • NPN

Certification & Approval

  • CE
  • cULus Listed
