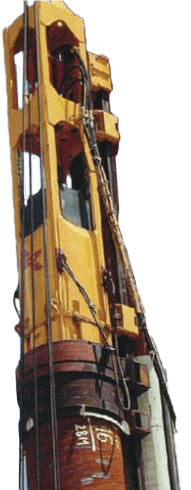

CG-300 Hydraulic Hammer
Brand: PACO Ventures, LLCThe CG range of piling hammers is designed for driving a variety of bearing piles including steel tube, combi piles, ‘H’ sections and reinforced / pre stressed concrete piles.
Operated from piling rig leaders or crane suspended, the CG range has the following important features: total control of hammer stroke and blow rate, allows precise matching of energy to suit the pile driving requirements, simple fast dolly changing, cylinder and dropweight connection with shock absorber, and is easily accessible.
Features- Total control of hammer stroke and blow rate.
- Allows precise matching of energy to suit the pile driving requirements. Digital readout of hammer performance in choice of units - (Stroke or Energy). Simple fast dolley changing.
- Cylinder and dropweight resilient connection , easily accessible.
- Economical - Low Hydraulic power requirement.
- Available with BSP Hydropacks which conform to latest emissions regulations. Can drive Piles with ultimate load bearing up to 14,500 kN
- Suitable for driving Raked (Batter) Piles.
Specifications
Brand
Ram Mass
- 44,080 lb
Energy Range
- 220,440 ft-lb
Blow Rate
- 29 bpm
Operating Pressure
- 4,200 psi
Hydraulic Flow Required
- 110 gpm
Hammer Weight
- Configuration A - 57,530 lb (26,095 kg)
- Configuration B - 57,530 lb (26,095 kg)
Total Length
- Configuration A - 35'-5"
- Configuration B - 28'-11"
- Configuration C - 28'-2"
Total Weight
- Configuration A - 84,420 lb (38,292 kg)
- Configuration B - 69,000 lb (31,298 kg)
- Configuration C - 63,500 lb (28,803 kg)
