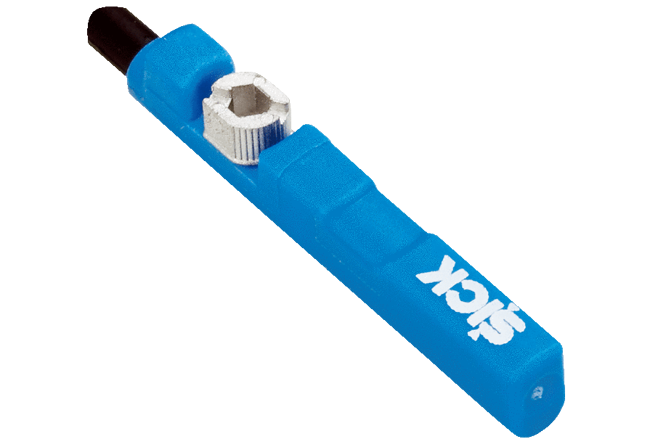

Sensors for C-Slot Cylinders, MZC1 VIA.png

MZC1 Sensor for C-Slot Cylinders

Brand: Sick AG

The MZC1 magnetic cylinder sensor from SICK is the flexible solution for detecting the piston position in pneumatic actuators. The MZC1 can be mounted directly into all cylinders with standard C-slots. SICK also has an extensive range of adapters which enable the MZC1 to be used with other cylinder types.

The MZC1 is characterized by its simple mounting principle: Insert the sensor into the slot and rotate the fixing screw a quarter turn to fix it securely to the cylinder. Furthermore, the MZC1 is available in a range of variants up to an enclosure rating of IP 69K. This ensures the sensor has a long service life and reduces maintenance costs.

At a glance

Can be used in all standard cylinders, linear slides, and grippers using the C-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders
Drop-in mounting from above simplifies handling and assembly
Combined fixing screw (hexagon socket screw and slotted screw)
LED for indicating the output state
Enclosure ratings: IP 67, IP 68, IP 69K

Features

A sensor for a wide range of applications: The sensor design fits into all standard C-slots used around the world, regardless of the cylinder profile or make
Quick and easy mounting using an Allen key or flat-head screwdriver
Low maintenance costs as the sensor is resistant to shock and vibration, meaning it does not slide about in the slot
Saves time on initial installation and when replacing devices as the sensor can be easily inserted into the slot from above. The end caps of the cylinder do not have to be removed.
Very rugged housing with enclosure rating IP 67, IP 68, or IP 69K extends the service life of the sensor

1 - 12 of 27 Part Numbers

per page:

1059735

Connection Type - Cable with Connector M8, 3-pin, 0.3 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2PS-KP0

1059736

Connection Type - Cable with Connector M12, 3-pin, 0.3 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2PS-KQ0

1059737

Connection Type - Cable with Connector M8, 3-pin, with Knurled Nuts, 0.3 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2PS-KR0

1059738

Connection Type - Cable, 3-wire, 2 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2PS-KU0

1059739

Connection Type - Cable, 3-wire, 5 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2PS-KUB

1059740

Connection Type - Cable, 3-wire, 2 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2PS-KW0

1059741

Connection Type - Cable, 3-wire, 5 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2PS-KWB

1059742

Connection Type - Cable with Connector M8, 3-pin, with Knurled Nuts, 0.3 m
Switching Output - NPN
Output Fuction - NO
Type - MZC1-2V2NS-KR0

1059743

Connection Type - Cable, 3-wire, 2 m
Switching Output - NPN
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2NS-KU0

1059744

Connection Type - Cable with Connector M8, 3-pin, 0.3 m
Switching Output - NPN
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-2V2NS-KP0

1059752

Connection Type - Cable with Connector M8, 3-pin, 0.3 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-4V3PS-KP0

1059753

Connection Type - Cable with Connector M8, 3-pin, with Knurled Nuts, 0.3 m
Switching Output - PNP
Output Fuction - NO
Electrical Wiring - DC 3-wire
Type - MZC1-4V3PS-KR0

1 - 12 of 27 Part Numbers
