Fairchild Explosion - Proof M/P Conveter, Model 2400XC/XS

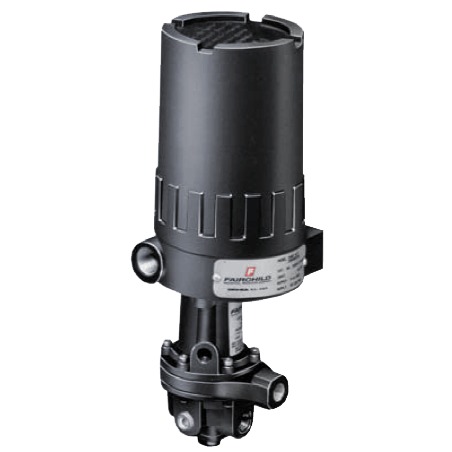

Model 2400XC/2400XS Explosion-Proof M/P Converter

Brand: Fairchild Industrial Products
Add Product to My Catalog

The Rotork Fairchild 24XC and 24XS M/P Converters are motor driven pneumatic regulators with motor assemblies enclosed in a NEMA 4X Explosion-proof enclosure.

AC Control Unit (24XC)
The AC Control unit for the 24XC unit is a continuous operation motor available in 115 Vac. A feedback potentiometer option is available for these units.

DC Pulse Input Unit (24XS)
The DC pulse input assembly for the 24 XS unit is a Clock Generator/Translator board available for the 12 Vdc or 24 Vdc pulse input. This allows the use of an external Controller with a 12 Vdc or 24 Vdc output.

DC Analog Input Unit (24XS)
The DC Analog input assembly is an Amplifier (Proportional Control) and Translator board which allows operation with a 4-20 mA or 1-5 Vdc Analog input. Minimum-maximum limit switches are standard on this unit.

Reverse action and split ranging on the Analog unit can be achieved in the field.

TTL Input (+5vD) (24XS)
The TTL input unit is equipped with a Translator board only. The user is required to supply the digital input pulses.

The control assembly for the 24XS unit is a stepper motor with an integral Translator board which converts 12 Vdc or 24 Vdc digital input pulses supplied by the customer into control logic to drive the stepper motor.

View_Details

Specifications

Brand

Approvals & Certifications

  • FM Class I, Div. 1, Groups A, B, C, D

Consumption

  • 21 W at 12-24 Vdc

Enclosure, Body Material

  • Aluminum
  • Brass
  • Nylon
  • Steel

Environmental Protection

  • Dust Ignition-Proof for Class II
  • Explosion-proof
  • NEMA 4X

Exhaust Capacity - Relieving Units Only

  • 5.5 scfm (9.4 m³/hour)

Flow Capacity

  • 14 scfm (23.8 m³/hour)
  • 2.5 scfm (4.25 m³/hour)
  • 40 scfm (68 m³/hour)

Input Power

  • Input to Amplifier/Translator: 4-20 mA

Motor Voltages

  • DC Analog Input: 12-24 Vdc
  • DC Pulse Input to Clock Generator / Translator Board: 23-26 Vdc @ 800 Ma

NPT Connection

  • 1/4” NPT Female
  • 1/8” NPT Female

Power Options

  • DC Pulse / Analog

Pressure Range

  • bar: 0 to 7
  • kPa: 0 to 700
  • psig: 0 to 100

Temperature Range

  • -40° to 93° C (-40° to 200° F)
