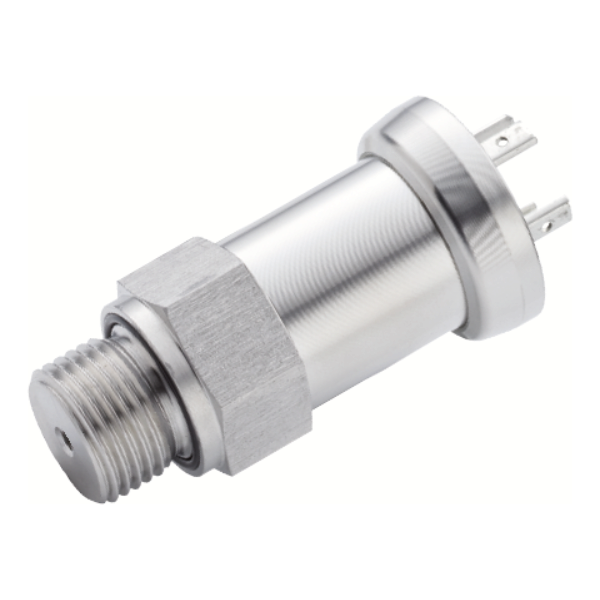

NIPRESS D-300 Pressure Transmitter
Brand: Nivelco Process Control Co.The NIPRESS D–300 series pressure transmitter measures pressure and converts it into voltage or current. It can be used in 2- and 3-wire systems.
The models' wide choice makes it suitable for many pressure measurement tasks, especially for use in hydraulic applications with relative or absolute pressure, static or dynamic measurement is required.
Two different accuracy classes are available. The transmitter's design, the wide temperature range, high overload capability, and the possibility of installing the unit in any position allow their application in many different industrial circumstances.
Transmitters can be delivered with plug-in display UNICONT PLK–501 enabling on-site reading. Ex or SIL versions are also available.
Features- Stainless steel internal diaphragm
- Relative or absolute pressure measurement
Specifications
Accuracy
- 0.1%
- 0.25%
- 0.5%
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Approvals & Certifications
- ATEX Ex ia
Approvals & Certifications
- SIL 2
BSP Connection
- 1/2” BSP Male
- 1/4” BSP Male
Diaphragm Material
- Internal: Stainless Steel
Environmental Protection
- IP65
- IP67
- IP68
Nominal Pressure
- psig: 0 to 8,700 (kPa: 0 to 60,000, bar: 0 to 600)
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
Output
- 0-10 V
- 4-20 mA
Pressure Type
- Absolute
- Relative
Process Temperature
- -40° to 125° C (-40° to 257° F)
Sensor, Probe Material
- Sensor: Stainless Steel
- Energy Industry
- Environmental Engineering
- For Static or Dynamic Measurement
- HVAC
- Hydraulics
- Mechanical & Plant Engineering
- Not Suggested to Use Directly with Mediums Tending to Sedimentation, Crystallization or Solidification
- Refrigeration Engineering
