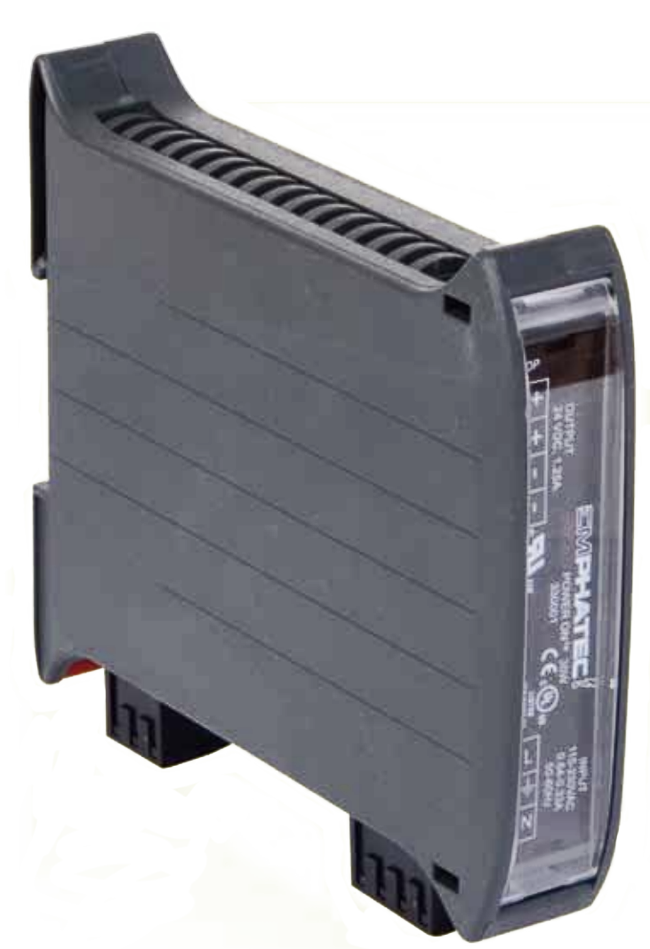

DC Plus 30W Power Supply.png

DC Plus 30W Power Supply

Brand: Emphatec
Add Product to My Catalog

The DC Plus 30W Power Supply was designed specifically to reduce the amount of panel space required to install an AC/DC power supply.

At just 22.5 mm wide it is ideal for retrofits and for applications where a small control cabinet is used. The input is 120/230 Vac and the output is rated 24 Vdc at 1.25 A.

The high efficiency regulation circuit minimizes power dissipation and allows for the compact package. The output is adjustable from 23.5-28.5 Vdc. All connections are via plug and socket connectors.
Features
  •  Universal input

  •  24 Vdc at 1.25 A output

  •  22.5 mm wide

  •  Plug and socket connectors

    • Specifications

    Brand

    Approvals & Certifications

    • CE
    • CSA
    • UL (C,US)

    Capacitance

    • Maximum

    Circuit Protection

    • Overload Protection: Overcurrent Shutdown with Auto Restart
    • Overvoltage (Transient) Protection: MOV

    Current

    • Current: 1.07 A at 28 Vdc, Max.
    • Current: 1.25 A at 24 Vdc, Max.
    • Input Protection: 2 A Slow Blow Fuse (Internal)
    • Inrush Current: 37.5 A Peak, Max.
    • Short Circuit Current: 6.8 A Peak

    Electrical - Free Leads

    • 22 to 12 AWG (0.5 to 2.5 mm²)

    Frequency

    • Switching Frequency: 100 kHz PWM

    Function

    • Maximum

    Humidity

    • Operating: 20 to 85 % Relative Humidity, Non-Condensing
    • Operating: 20 to 95 % Relative Humidity, Non-Condensing

    Input

    • 85-265 Vac
    • Input Current (Average) at 115 Vac: 530 mA RMS
    • Input Current (Average) at 125 Vdc: 300 mA DC
    • Input Current (Average) at 230 Vac: 310 mA RMS
    • Input Current (Average) at 250 Vdc: 150 mA DC
    • Input Voltage: 115-230 Vac ± 10 %, 50/60 Hz

    Isolation

    • Input/Output to Rail: 4,000 V
    • Input to Ground: 1,500 V
    • Input to Output: 3,000 V
    • Output to Ground: 500 V

    Operating Temperature

    • -40° to 45° C (-40° to 113° F)

    Output

    • Output Voltage: 24 Vdc (Adjustable from 23.5 to 28.5 Vdc)

    Storage Temperature

    • -40° to 85° C (-40° to 185° F)

    Torque

    • 0.4 to 0.5 Nm
