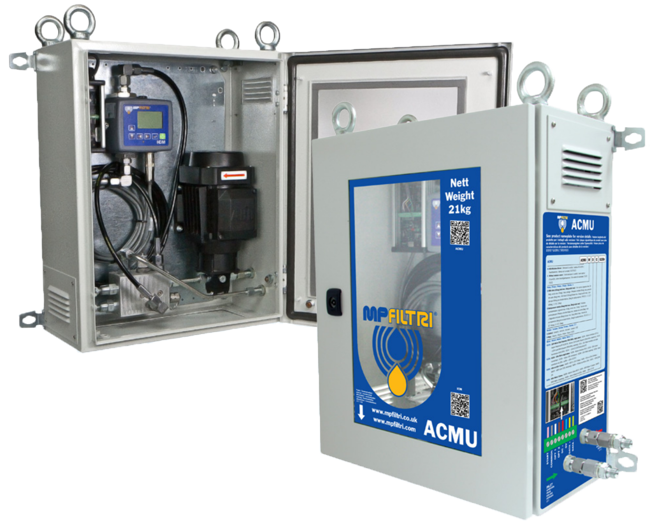

Auxiliary Contamination Monitoring Unit

MP Filtri’s ACMU combines technology to enable sampling on low pressure hydraulic and lubrication systems where aeration can be an issue.

The ACMU supresses the air bubbles so they are no longer counted as particles.

The ACMU can be installed in most low pressure hydraulic and lubrication systems ranging from zero bar pressure to a max of 50 bar: D version pump.

A further option: B version pump can be installed on systems with a max of 6 bar on inlet of ACMU pump and a max of 3 bar on system return.

These two options give the user the versitility to install the ACMU in a variety of different system applications.

Utilizing the best particle counter in its class as standard, the ACMU delivers simplicity, practicality & accuracy for the most demanding of applications.

Proven optical technology and algorithms, ensure consistent monitoring of your system, providing peace of mind for your operators/investors.

Both variants of ACMU come with an ICM as standard complete with RS485/232 MODBUS & CANBUS: J1939 typical, protocols for remote control.

ICM Communication & Motor power needs to be completed by the customer during installation.

Cable for motor power is not supplied.

The ACMU is configured deliberately to provide customers the versatility they require for existing systems or those in development.

The in-built motor/pump assembly and automatic particle counter - ICM can be wired to directly, allowing control through a wide range of communication protocols and logic controllers.

A small footprint & lifting eyes make it the ideal solution for safe installation on new or retrofit applications.

A wide range of operating voltages allow us to support a global market, and emerging technologies.
