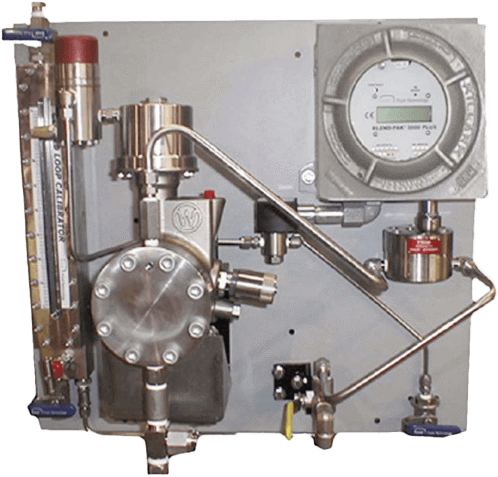

This system is ideal for Mercaptan injection and many other micro-dose applications.

The system control is provided by a Blend-PakTM Micro-Processor and the pump is powered by air pressure or nitrogen.

The Closed Loop Calibrator is provided for products non-desirable for atmospheric exposure.
Features
  • Monitors complete injection process with 7 programmable alarms
  • Provides superior injection accuracy through cyclical injection
  • Meter accuracy to 0.25%
  • Easy to use non-venting calibration
  • 750 transactions stored internally with time, date, Lpg amount, Mercaptan Injected for each truck load. Accessible via communications
  • Compatible with all major presets and terminal automation systems
  • RS 232, RS 485 communications. Smith, Brooks, Gate City, and Modbus protocol
  • Programmed with IR remote hand-held controller or via communications
  • All components compatible with process fluids associated with mercaptan use: stainless steel gears, dynamic wetted parts, specialty elastomers selected for application
  • Stainless steel dual seal plunger pump
  • Pneumatic or nitrogen powered
  • Up to a 2600 PSI delivery pressure

Specifications

Power

  • 110/240 VAC 50/60 Hz or 12/24 VDC

Current consumption

  • <50 mA. @120 VAC/<25

Input

  • AC or DC input for product pulses

Communication Terminals

  • RS232, RS422, and RS485

Approvals

  • Class I, Division I, Groups C & D
  • Class II, Groups E, F, & G

Mounting

  • All equipment mounted on panel for easy installation
  • Panel size 24” X 22”

Available Accessories

  • Hand-Held Controller
  • Blend-PakTM Communications- Com II, & III software packages

Calibration

  • The Closed Loop Calibrator assures complete system integrity without atmospheric exposure of the product. Components include a high pressure clear glass indicator for volumetric measurement, pressure check valve on inlet connection for simulating load conditions due to system pressure, and a needle valve used for calibrator zeroing and draining. Calibration is quick and easy
