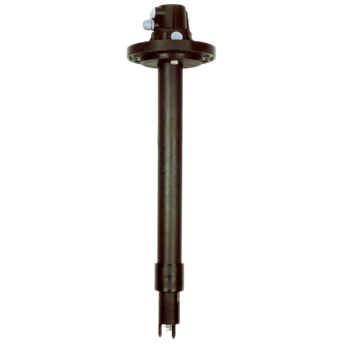

Immersion Assembly Dipfit CPA111

Brand: Endress+Hauser Group Services AG
Add Product to My Catalog

The Dipfit CPA111 immersion assembly is designed for applications in open and closed tanks. It offers space for three sensors that can be easily mounted and removed via the bayonet lock. The adjustable flange gives you the required flexibility for universal use.

Dipfit is the time- and cost-efficient solution for standard water and wastewater treatment.

Dipfit CPA111 is intended for universal use in open basins, channels and closed tanks in:
  • Wastewater
  • Water treatment
It is suitable for use with pressures of up to 4 bar.
Features
  • Simple installation and removal of electrode holder due to bayonet lock
  • Flexible immersion depth thanks to adjustable flange
  • Reduces installation effort by providing 3 mounting positions for 120 mm sensors or an optional cleaning unit
  • Made of environmentally compatible polypropylene material

View_Details

Specifications

Brand

Material of Construction

  • Sensor Holder: PP-GF 20
  • Immersion Tube: PP

Process Temperature

  • Max. 80° C (176° F)

Process Pressure

  • Max. 4 bar at 20° C (Max. 58 psi at 68° F)

Connection

  • Suspended Assembly, Lap Joint Flange DN100
  • Pressurized Flange DN100/PN4, Adjustable Flange DN100

Dimensions

  • Length: 500 to 3,000 mm (19.7 to 118 inch)

  • Wastewater
  • Water Treatment

Documentation

Data Sheets

Installation Manual

Operation Instruction
