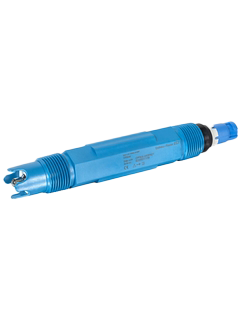

Digital ORP Sensor Memosens CPF82E

Brand: Endress+Hauser Group Services AG

Memosens CPF82E is the digital, robust solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE junction guarantees low maintenance while its integrated assembly offers easy and compact installation.

Thanks to Memosens 2.0 digital technology, CPF82E combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.

Memosens CPF82E is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:
  • Inlet and outlet
  • Neutralization
  • Flotation
  • Leaching
With CSA C/US approval for use in hazardous areas, zones 0, 1 and 2.
Features
  • Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services
  • Long time stable: Double junction provides better protection against electrode poisoning ions such as S2- or CN-
  • Robust polymer housing protects against mechanical damage
  • The sensor is suitable for flow and immersion installation
  • Non-contact, inductive signal transmission maximizes process safety
  • Minimum process downtime and extended sensor lifetime reduce operating costs

Specifications

Measuring Range

  • -1,500 to +1,500 mV

Material of Construction

  • Housing: PPS
  • Double Chamber Reference System: KNO3 & KCl/AgCl
  • ORP Electrode: Platinum Ring

Process Temperature

  • 0° to 80° C (32° to 176° F)

Process Pressure

  • 1 to 10 bar abs at 80° C (15 to 145 psi at 176° F)

Connection

  • Memosens Plug
  • Process Connection: NPT 3/4"

Ingress Protection

  • IP68

Temperature Sensor

  • NTC

Certifications & Approvals

  • (Optional) FM IS NI Cl. I Div.1&2, Groups A-D
  • CSA C/US

Dimensions

  • Diameter: 22 mm (0.87 inch)
  • Length: 150 mm (5.91 inch)

  • Flotation, Leaching, Neutralization, Outlet Monitoring
