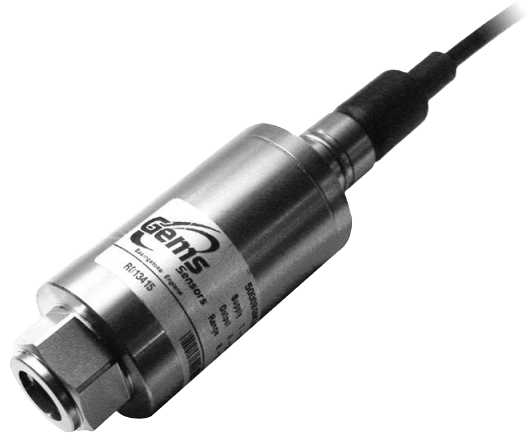

5000 Series Low Pressure Transducer
Brand: Gems Sensors, Inc
The 5000 Series features a sturdy ceramic diaphragm that detects minute pressure variations, while withstanding large pressure spikes.
The tough ceramic sensor is housed in a duplex stainless steel case to ensure performance in the most demanding applications, such as sea water.
Features- Submersible and General Purpose Models
- Stainless Steel Case Construction
- High Proof Pressures
Specifications
Brand
Accuracy
- 0.2 % of Span, Max.
Approvals & Certifications
- CE
- LLOYD
BSP Connection
- G 1/4" Female
- G 1/4" Male
Burst Pressure
- psi: 45 to 145 (kPa: 310.3 to 999.7, bar: 3.10 to 9.99)
Cable Length
- 0 to 4,370 ft (0 to 999 m)
Compensated Temperature
- -20° to 60° C (-4° to 140° F)
Conduit Connection
- 1/2"-14 NPT Conduit
Constant Acceleration
- 100 G, MIL-STD-810C, Method 513.2, Procedure II
Electrical Connectors
- Fixed Plug to DIN 43560 Mating Connector Supplied
- M12 x 1, 5-Pin
Environmental Protection
- Code G IP65
- Code M IP68 Submersible
- Explosion-proof: EXII 1 G, E Exia II BT4 (-20° C < Tamb < 75° C)
Metric Connection
- M14 x 1.5 Male
Mounting Position Effect
- Mounting Effects: 0.25 % of Span, Max.
NPT Connection
- 1/4"-18 NPT Male
Operating Temperature
- Electrical Code G & L: -25° to 85° C (-15° to 185° F)
- Electrical Code M & 3: -20° to 50° C (-5° to 120° F)
Output
- 0.1-5.1 Vdc
- 0.5 - 5.5 Vdc
- 0-5 Vdc
- 1-5 Vdc
- 1-6 Vdc
- 4-20 mA, 2-Wire
Pressure Cycles
- Fatigue Life 10 Million of Full Scale Cycles
Pressure Range
- bar: 0 to 1.034
- inH₂O: 0 to 415
- kPa: 0 to 103.4
- psi: 0 to 15
Pressure Type
- Gauge
Process Temperature
- -40° to 100° C (-40° to 212° F)
Proof Pressure
- psi: 30 to 100 (kPa: 206.8 to 689.5, bar: 2.06 to 6.89)
Response Time
- 5 ms
Sensitivity
- Supply Voltage Sensitivity: 0.01 % of Span/Volt
Stability
- Long Term Stability: 0.25 % of Span/Annum
Supply Voltage
- 8-35 Vdc (1-6 Vdc Output)
- 9-35 Vdc (ExII 1 G 9-28 Vdc)
Thermal Drift
- Thermal Error: 2 % of Span, Max.
Tolerance
- Zero & Span Tolerance: 1 % of Span
UNF/UNC Connection
- 7/16"-20 UNF Male-3A
Vibration
- 35 G Peak 5 to 2000 Hz, MIL-STD-810, Method 514.2, Procedure I
Wetted Materials
- 318 Duplex Stainless Steel
- Ceramic
- Nitrile
- Viton
