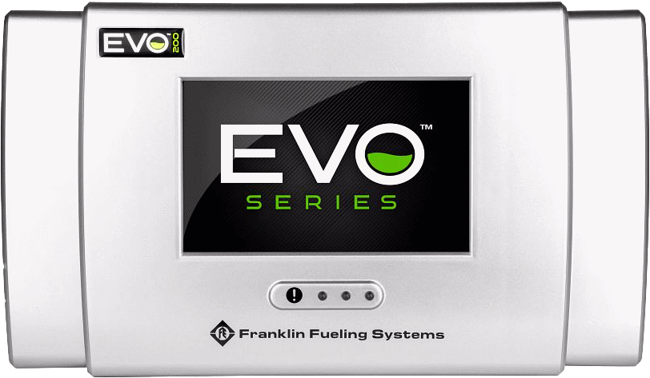

EVO™ 200 & EVO™ 400 Automatic Tank Gauge
Brand: Franklin Electric Fueling Systems
EVO™ 200 & EVO™ 400 Automatic Tank Gauges (ATGs) provide highly accurate inventory management and containment monitoring for small to mid-size fuel systems. With pre-configured hardware and customizable software options, these ATGs provide straightforward tank level monitoring and compliance.
Their simple setup and operation, remote connectivity, and advanced security features protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.
The highly-intuitive, full-color, icon-based touch screen provides user-friendly on-site access to inventory, alarm, and compliance data.
Features- Provides inventory monitoring, static (included feature) and continuous tank testing (optional feature), tank autocalibration, inventory reconciliation, containment compliance monitoring, and flow rate monitoring
- Both ATGs feature the capability to interface with probes and sensors in any combination up to 6 (EVO™ 200) or 14 (EVO™ 400)
- Customizable user roles and log-in security features protect against unwanted access while keeping track of user activity within your system
- Streamlined setup and programming includes hardware auto-detection and wiring confirmation, multipoint tank charting, network printer auto-detection, and the ability to download and upload entire programming profiles from one ATG to another
- Intuitive full-color 7" (17.78 cm) touch screen interface provides simplified on-site access features including:
- Six available One Touch buttons that are custom programmed to carry out common automated tasks with a single tap
- Quick Jump menu allows you to quickly maneuver from application to application using a single button
- Programmable product colors
- Available with optional 24-hour Statistical Continuous
- Automatic Leak Detection (SCALD) and Turbine Pump
- Interface (TPI) capability for enhanced and automated submersible turbine pump control
- Web interface allows you to directly connect to your ATG via FFS PRO® Connect from any web-enabled device
- Optional Wifi allows secure and protected on-site viewing of inventory levels for fuel delivery drivers
Specifications
Certifications & Approvals
- UL
- ATEX
- IECEx
- cUL
Maximum Tanks Monitored
- 6 (EVO™ 200)/14 (EVO™ 400)
Maximum Sensor Input Capacity
- 6 (EVO™ 200)/14 (EVO™ 400)
Total # of Input
- 6 (EVO™ 200)/14 (EVO™ 400)
Dry Contact Input Channels
- 2
Relay Output Channels
- 2
Connectivity
- Ethernet, RS-232, RS-485, Standard USB, Mini USB, and Wifi (Optional)
Display
- 17.78 cm (17.78 cm) Color LCD Touch Screen
Alarm
- Internal Audible Alarm
Applicable Liquid
- Petroleum, Chemicals, and Waste
Power Requirement
- 110-240 VAC, 50/60 Hz, 2.6 A
Operating Temperature
- 32° to 104° F (0° to 40° C)
Humidity
- 0-95% Non-condensing
Dimensions
- H 8" (205 mm), W 13-3/4" (350 mm), D 3-1/4" (83 mm)
