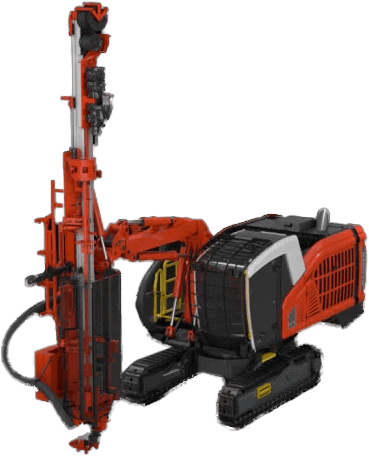

Ranger™ DX900i Surface Top Hammer Drill Rig
Brand: SandvikThe new Ranger™ DX900i is the flagship model of our new Ranger™ DXi family.
Featuring the most powerful rock drill in its class, Sandvik intelligence features and a counterweight, revolving superstructure enabling ultimate stability, Ranger™ DX900i characterizes our revolutionary generation of Ranger™ DXi top hammer surface drill rigs.
With an ultimate drilling coverage of 290° (55 m2), it is the most powerful and efficient rig in its class.
Features- 290 degrees revolving upper structure with 55 m2 drilling coverage area
- new rock drill family with 21-27 kW
- Sandvik GT 60 tools enable higher productivity with straighter 92-127mm holes
- beat difficult rock with well-known iTorque control system
- new iCab cabin with extremely low noise level 73,5 dB
Specifications
Brand
Recommended Hole Diameter
- 89 - 140 mm* (3 - 5.5 in.)
Drill Rod / Tube Diameter
- 51 and 60 mm (2 and 2-3/8 in.)
Hydraulic Rock Drill
- RD927L / 27 kW
Engine
- olvo TAD852VE 210 kW (286 hp) / 1 800 rpm (Tier3)
- Volvo TAD872VE 210 kW (286 hp) / 1 800 rpm (Tier 4)
- Volvo TAD882VE (210 kW (286hp) / 1 800 rpm (Stage V)
Flushing Air Capacity
- 9.5 m³/min, up to 10 bar
Operator Cabin
- iCab
Certificate
- ROPS and FOPS
Transport Length
- 12.4 m (40.7 ft)
Transport Width
- 2.45 m (8 ft)
Transport Height
- 3.3 m (10.8 ft)
Weight
- 19,600 kg (43,210 lb)
