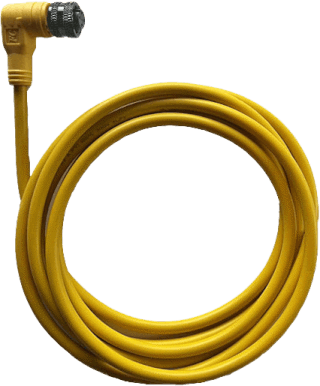

Right Angle Male 12mm (M12), 4 Pos 22AWG Cable with Yellow PVC Jacket, Other End Terminates in Flying Leads

Brand: Finecables Co, Ltd

Features
  • UL Recognized, CE, IEC 61076-2-101
  • Industry standard right angle connection
  • Single-ended male connection
  • 2, 5, 10 and 15 meter lengths for most varieties

Specifications

Certifications

  • UL Recognized
  • CE
  • IEC 61076-2-101

Protection

  • IP67

Cable Type

  • PVC (Jacket and Wire Insulation)

Operating Temperature

  • -10° C to +70° C

Rated Current

  • 4A

Nominal Voltage

  • 250 Vac
  • 300 Vdc

No. of Poles

  • 4

Wire Size

  • 22 AWG (.34 mm)

Contact Resistance

  • Less Than or Equal to 5 Milliohms

Insulation Resistance

  • Greater Than 20 Megohms

Screw & Nut

  • Brass W/ Nickel Plating

Contact Material

  • Brass W/ Gold Plating

Overmold

  • TPU (Thermoplastic Polyurethane)
