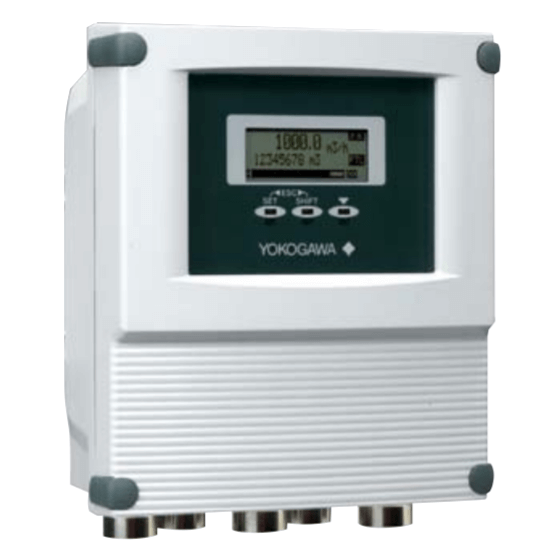

AXFA11G Magnetic Flow Converter

Brand: Yokogawa Electric Corporation

The AXFA11 magnetic converter retains all the features and functions of the ADMAG series of converters, featuring Yokogawa’s enhanced dual frequency excitation method as an option for difficult applications as well as new diagnostics to detect electrode coating.

Combined with a flow tube utilizing the optional replaceable electrode design, the user can schedule maintenance for reduced process downtime and in turn a lower total cost of ownership.

The AXFA11 can be combined with AXG and AXW flow meters for specific specifications.

Its wall-mounted design for general purpose applications can also be used as a universal converter for third-party flow tubes.
Features
  • User-oriented Functionality
    • Fluid Adhesion Level Diagnosis
    • Clear and Versatile Indications
    • “Easy Setup” Parameters
    • Operation Immediately after Installation
    • Compact and Light-weight Converter
  • Expansion of Product Lineup
    • Improve Accuracy Specification
  • Enhanced Performance and Specifications
    • Enhanced Dual Frequency Excitation Method
    • Improved Minimum Conductivity
    • High-Speed Pulse Output
    • Versatile Input/output Function

Specifications

Accuracy

  • ± 0.2 % of Rate
  • ± 0.35 % of Rate
  • 0.18 % of Rate + 0.2 mm/sec
  • 0.2 % of Reading - High Accuracy Calibration
  • 0.35 % of Reading
  • Pulse Output Accuracy Plus ± 0.05 % of Span - Current Output

Alarm

  • 2.4 mA or Less
  • Fixed to 4 mA, 21.6 mA or more

Ambient Temperature Range

  • -40° to 60° C (-40° to 140° F)

Approvals & Certifications

  • EMC EN 61326-1 Class A, EN 61326-2-3, EN 61000-3-2 Class A, EN 61000-3-3

Cable Material

  • Polyethylene Insulated PVC Sheathed

Communication

  • BRAIN
  • HART

Consumption

  • 20 W - Max.

Cover Material

  • Aluminum Alloy - Converter Material

Damping Adjustment

  • 0.1 to 200 seconds
  • 3 seconds - Default

Diagnostics

  • System, Process, Setting Alarms & Warnings

Display

  • Full Dot-Matrix LCD

Distance

  • 6” (15 cm) or more - Distance from Power Line
  • Up to 1.5 Kilometers - Communication Distance (BRAIN)

Electrical Connectors

  • ANSI 1/2” NPT Female
  • ISO M20 x 1.5 Female
  • JIS G 1/2” Female
  • M4 Screw Terminal

Electrical Protection

  • Lightning Protection

Enclosure Finish

  • Corrosion-Resistant Coating
  • Mint Green (Munsell 5.6BG 3.3/2.9 or its Equivalent)
  • Silver Gray (Munsell 3.2PB 7.4/1.2 or its Equivalent)

Enclosure, Body Material

  • Aluminum Alloy - Converter Material

Environmental Protection

  • IP66
  • IP67

Humidity

  • 0 to 100 % - Ambient Humidity

Input Impedance

  • 10 kiloohms or more at 2.4 kHz

Insulation Resistance

  • 100 megaohms at 500 Vdc - between Power Supply Terminals & Ground Terminal, between Power Supply Terminals & Input/Output / Excitation Current Terminals
  • 20 megaohms at 100 Vdc - between Ground Terminal & Input/Output/Excitation Current Terminals, between Input/Output/Excitation Current Terminal

Load

  • 0.22 µF or Less - Load Capacitance
  • 3.3 MH or Less - Load Inductance

Materials of Construction

  • Ceramics Lining
  • EPDM Rubber Lining
  • Natural Soft Rubber Lining
  • PFA Lining
  • Polyurethane Rubber Lining

Mounting

  • 2” Pipe Mount
  • Panel Mount
  • Surface Mount

Operating Temperature

  • -20° to 60° C (-4° to 140° F) - Indicator's Operating Range

Operating Voltages

  • 20.4-28.8 Vac
  • 20.4-28.8 Vdc
  • 80-264 Vac
  • 90-130 Vdc

Output

  • 30 Vdc (OFF) / 200 mA (ON) - One Pulse, One Alarm, Two Status Outputs
  • 4-20 mA DC (Load Resistance: 1 kiloohms, Max.
  • Pulse Signals

Power Supply

  • 100-120 Vdc - Rated Power Supply
  • 100-240 Vac, 50/60 Hz - Rated Power Supply
  • 24 Vac, 50/60 Hz - Rated Power Supply
  • 24 Vdc - Rated Power Supply

Pulse Range

  • 0.0001 to 10,000 Pulse/second - Output Rate
  • 0.05 to 100 milliseconds - Pulse Width

Repeatability

  • ± 0.1 % of Rate (V≥ 1 m/sec (3.3 ft/sec))
  • 0.05 % of Rate ± 0.5 mm/sec (V< 1 m/sec (3.3 ft/sec))

Resistance

  • 10 ohms or Less - with Lightning Protector
  • 100 kiloohms or more (OFF) - Load Resistance
  • 100 ohms or Less - Grounding Resistance
  • 200 ohms or Less (ON) - Load Resistance
  • 250 to 450 ohms (Including Cable Resistance) - Load Resistance for BRAIN Communication
  • 250 to 600 ohms (Including Cable Resistance) - Load Resistance for HART Communication

Supply Voltage

  • 1,400 Vac for 2 seconds between Power Supply Terminals & Ground Terminal, between Power Supply Terminals & Input/Output Terminals - Withstand Voltage
  • 160 Vac for 2 seconds between Excitation Current Terminal & Ground Terminal - Withstand Voltage
  • 350 Vac for 2 seconds between Excitation Current Terminal & Input/Output Terminals - Withstand Voltage

Vibration

  • 4.9 m/sec² or Less (Frequency of 500 Hz or Less) in Conformity with IEC 60068-2-6
