Yokogawa Verabar Pitot Tube Flow Sensor, V150

V150 Verabar Pitot Tube Flow Sensor

Brand: Yokogawa Electric Corporation
Add Product to My Catalog

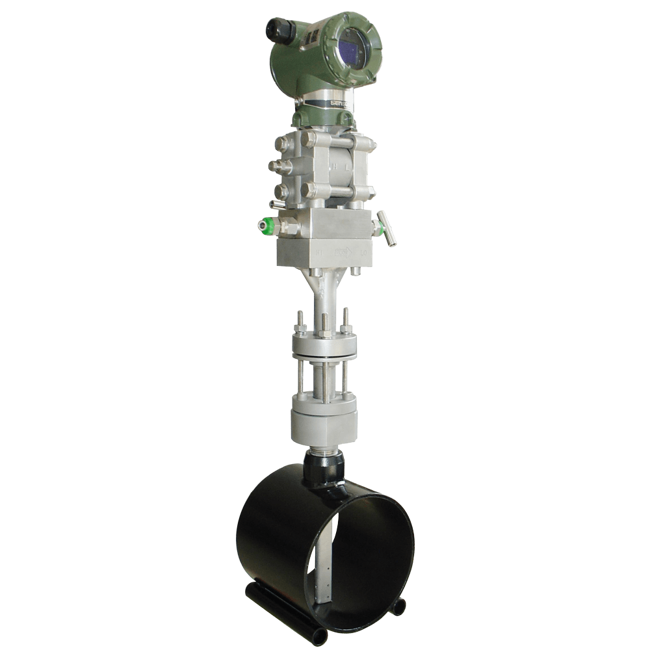

Yokogawa Verabar Pitot Tube Flow Sensor, V150
Developed from aerospace technology, the Verabar averaging pitot flow sensor provides unsurpassed accuracy and reliability.

With its solid, one-piece construction and bullet shape, the Verabar makes flow measurement leak proof and precise.

The unique sensor shape reduces drag and flow induced vibration.

The location of the low-pressure ports eliminates the potential for clogging and improves signal stability.
Features
  • Best Valued Model
  • Blow-out and Leak Proof Design
  • Preloads Sensor to Opposite Wall
  • Four Times Stronger than Conventional Mountings
  • Eliminates Need for Opposite end Support
  • Compensates for Changes in Pipe Diameter due to Pressure, Temperature or Mechanical Force

View_Details

Specifications

Brand

Applications

  • Air (Compressed, Combustion)
  • High Velocity Fluids
  • Natural Gas
  • Steam
  • Water (Raw, Cooling, Feedwater)

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 600# ANSI

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 600# ANSI

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 600# ANSI

Head Material

  • Stainless Steel - Instrument Head, Load Plate

Instrument Connection

  • 1/2” NPT

Materials of Construction

  • Carbon Steel - Weld Coupling

Media

  • Fluids
  • Gas
  • Steam

Mounting

  • Direct Mounting
  • Manifold
  • Remote Mounting
  • Spring Lock

Mounting Position

  • Horizontal
  • Vertical

NPT Connection

  • 1” NPT - Weld Coupling Size
  • 2” NPT - Weld Coupling Size
  • 3/4” NPT - Weld Coupling Size

Nut & Bolt Material

  • Stainless Steel - Studs & Nuts, Weld Coupling

O-Ring Material

  • Stainless Steel - Indicator Ring, Follower

Packing Material

  • Graphite
  • Stainless Steel - Packing Follower, Packing Body

Pipe Size

  • 12” to 60” (300 to 1,500 mm)
  • 2” to 6” (50 to 150 mm)
  • 6” to 42” (150 to 1,050 mm)

Pressure Range

  • psig: 0 to 1,440 (kPa: 0 to 9,930, bar: 0 to 99.3)

Pressure Type

  • Differential
  • Gauge

Sensor, Probe Diameter

  • 1-3/8” (35 mm) - Sensor
  • 7/16” (11 mm) - Sensor
  • 7/8” (22 mm) - Sensor

Sensor, Probe Material

  • 316 Stainless Steel - Sensor

Sensor, Probe Type

  • RTD

Spring Material

  • Stainless Steel - Spring Lock Load Plate

Temperature Range

  • 38° to 426° C (100° to 800° F)

Documentation

Data Sheets

Brochure

Specification
