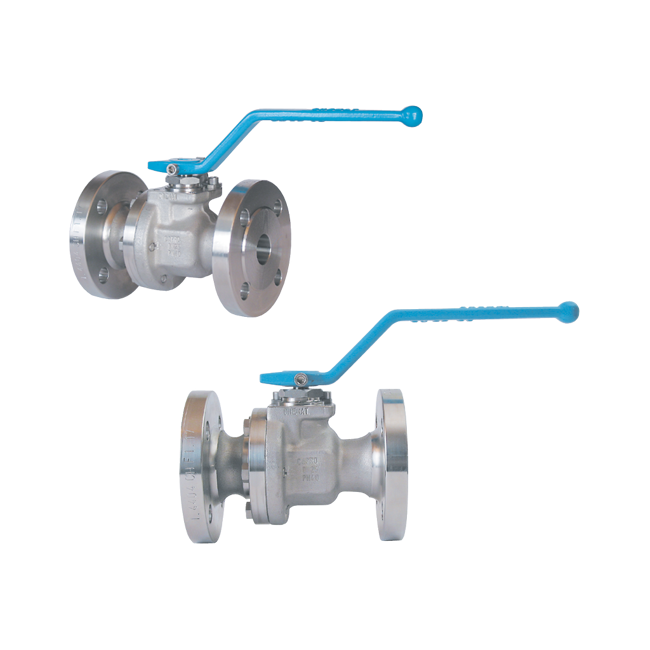

Model 327/627 Ball Valves
Brand: KTMCAPRO Series II ball valves meet the high quality demands and technical safety requirements of the chemicals industry.
Features- Two piece split body ball valve.
- Full bore.
- Blowout proof shaft, mounted from inside.
- Antistatic device as per ISO 7121.
- Low maintenance control shaft seals with manual emergency reset.
- Integrated DIN/ISO 5211 mounting plate for the mounting of quarter turn actuators.
- TA-Luft approval according VDI 2440 Design checked under nr. 020004 as a pressure device in accordance with directive 97/23/EC and AD 2000.
- Capsulated body seal.
- Overall length complies with DIN/EN 558-1, basic series 1.
- Possible special designs:
- Shaft extension.
- Spring-loaded seat.
- Heating jacket.
- Hand lever extension.
- Acceptance at manufacturer’s works and general industrial approvals.
- DVGW approval.
Specifications
Brand
Approvals & Certifications
- CE, Fugitive Emission, PED
Body Design
- Long Pattern
End Connection
- Flanged
Material
- 316 Stainless Steel, Steel
Media
- Water Glycol, Water, Steam, Mineral Oil, Liquids, Liquid, Light Oil, Hot Water, Fuel Oil, Ammonia, Air, Inert Gas, Air, Aggressive Liquids/Gases
Operating Temperature
- Less than 400° F (204° C)
Pressure Class
- ASME , PN
Process Connection Type
- PN 25, PN 16, PN 40, Class 150 RF
Seat / Seal Type
- Soft
Shutoff Class
- API 598, Zero Leakage
Standards
- ASME B16.34, API 608
Stem
- Live Loaded, Adjustable Packing
Valve Size
- NPS 1-1/2 / DN 40, NPS 1/2 / DN 15, NPS 4 / DN 100, NPS 3/4 / DN 20, NPS 3 / DN 80, NPS 2 / DN 50
Valve Size Standard
- NPS, DN
Valve Type
- Floating Ball Valve, Ball Valve
