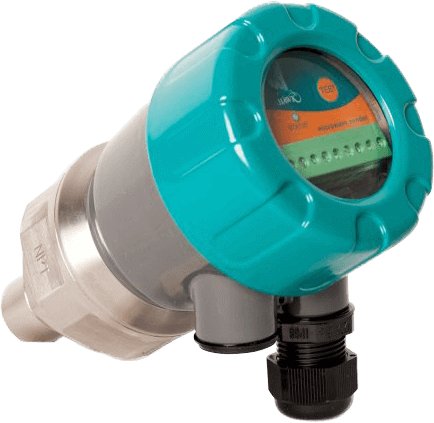

Gladiator G1 Microwave Switch
Brand: Hawk Measurement SystemsThe Gladiator Gen 1 Microwave Switch can be used for blockage detection, barrier detection, machine detection and point level measurement, and detection of objects or material between two points.
A high power circular polarized Microwave pulse is emitted from the Sending unit to the Receiving unit in a transmission chain of approximately 100 pulses per second. If the path between the Sender and Receiver is blocked by any object or material which absorbs or reflects microwave energy the Receiving unit will no longer detect the complete transmission chain and indicate via Relay for automatic indication and process control requirements.
Features- State of the art circular polarisation
- Simple sensitivity adjustment and calibration
- IECEx ta tb IIIC T* Da Db
- Theoretical range up to 300 m (984 ft)
- Simple
- 1-minuteÍ setup application presets
- Multiple Output & Communications Options
Specifications
Brand
Operating Voltage
- 12-30 Vdc (Residual Ripple No Greater Than 100 mV)
- 80-260 Vac
Power Consumption
- < 0.8 W @ 24 Vdc
- < 5 VA @ 240 Vac
- < 3 VA @ 115 Vac
Communication
- GosHawk, Modbus
- Modbus over Ethernet / Wi Fi / Bluetooth
Operating Temperature
- -30° to 65° C (-20° to 150° F)
Maximum Operating Pressure
- 10 bar (145 psig)
Display
- 2 Line x 12 Character Alphanumeric LCD
- Backlight Standard
Environmental Protection
- IP67/66
- IP65 (NEMA 4X)
Mounting
- 1” NPT, 1” BSP
Certifications & Approvals
- IECEx Zone 20/21, Zone 21
Wetted Material
- Sensing Element Housing: 316L Stainless Steel
- Sensing Element Face: Teflon
- Mining & Metals
- Chemical
- Food & Beverage
- Oil & Gas
- Plastics
- Water & Wastewater
