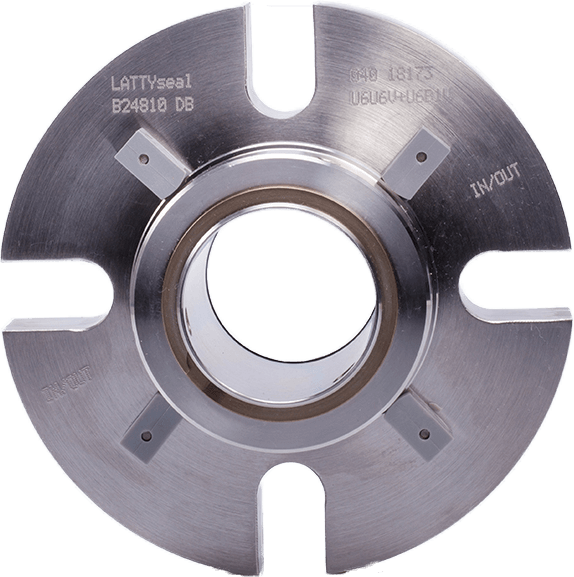

CARTseal B 24810 DB Dynamic Single Mechanical Seal
Brand: Latty International S.A.Dynamic sealing by double acting cartridge mechanical seal.
Capable of operating as a pressurised double mechanical seal or as a tandem seal without barrier pressure.
Fully adaptable to any environment. Self-decoupling mounting wedges.
Available in DBVP version: works as a double pressurised mechanical seal or as a tandem seal without barrier pressure.
CARTseal B24810 DBVP incorporates a pumping screw (VP) to allow the circulation of the barrier fluid, avoiding the costly and time-consuming installation of a motor pump.
Supplied with FKM (v4) or EPDM (E1) seal.
Features- ACS, ATEX (IIGD IIA-IIB T6 À T3), EC 1935/2004 and FDA as standard
- Capable of operating as a double pressurised mechanical seal or as a tandem seal without barrier pressure
- Fully suitable for any type of environment
- Self-turning setting clamps
Specifications
Brand
Operating Pressure
- 0 to 25 bar
- 0 to 2.5 MPa
- 0 to 362.5 psi
Operating Temperature
- -20° to 200° C
- -4° to 392° F
Speed
- 20 m/s
Friction Faces
- Silicon Carbide
- Silicon Carbide (U6/U6)
- Resin-Impregnated Carbon (U6/B1)
Fluids
- All Corrosive, Abrasive and Slightly Clogging Fluids
Material
- Centrifugal Pumps
- Volumetric Pumps
- Vertical and Horizontal Agitators
- Mixers
Approvals
- FDA
- CE 1935/2004
- ATEX
- ACS
