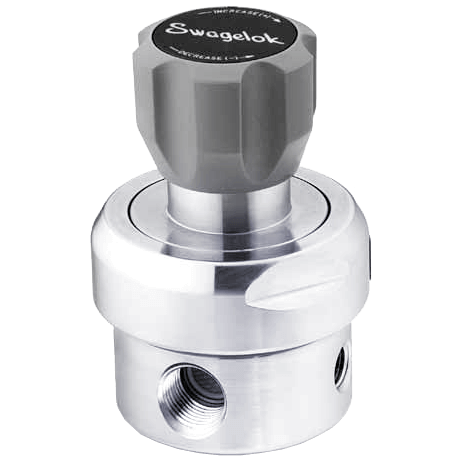

KHF Series High-Flow High-Sensitivity Regulator

Brand: Swagelok Company

The KHF series combines the high-flow capabilities -1.0 Cv - of a bulk distribution regulator with the high sensitivity and accuracy of a point-of-use regulator.
Features
  • Large-diameter convoluted, nonperforated diaphragm for increased pressure sensitivity
  • Metal-to-metal diaphragm seal
  • High-flow dual-gauze type filter positively retained in inlet port
  • Maximum Inlet Pressure: psig: 100 to 3,600, (bar: 6.89 to 248, kPa: 689.5 to 24,820)
  • Pressure Control Range: psig: 0 to 10 (bar: 0 to 0.689, kPa: 0 to 68.9) through psig: 0 to 250 (bar: 0 to 17.2, kPa: 0 to 1,724)
  • Maximum Operating Temperature:
    • 80°C (176°F) with PCTFE
    • 200°C (392°F) with PEEK
  • Process Connection: 1/2" Female NPT
  • Actuator: Knob, Antitamper nut
  • Materials of Construction:
    • Enclosure: 316 Stainless Steel
    • Diaphragm: Alloy X-750
    • Poppet: S17400 Stainless Steel
    • Seat: PCTFE, PEEK

Specifications

Actuator Type

  • 316 Stainless Steel Anti-Tamper Nut
  • Knob

Diaphragm Material

  • Alloy X-750 (Inconel)

Enclosure, Body Material

  • 316 Stainless Steel

Flow Rate

  • 1.0 Cv

Media

  • Gas

Mounting

  • None
  • Panel

NPT Connection

  • 1/2” NPT Female

Poppet Material

  • S17400 Stainless Steel

Pressure Range

  • bar: 0 to 17.2
  • kPa: 0 to 1,724
  • psig: 0 to 250

Process Temperature

  • 80° to 200° C (176° to 392° F)

Relief

  • High Flow

Seat / Seal Material

  • PCTFE
  • PEEK

Special Cleaning & Packaging

  • ASTM G93 Level E-Cleaned

Stem Material

  • 316 Stainless Steel

Supply Pressure - Maximum

  • bar: 6.8 to 248
  • kPa: 689 to 24,821
  • psig: 100 to 3,600

Supply Pressure Effect

  • 0.3 to 0.4 %

Vent

  • Captured & No Self Vent
  • Non-Venting
