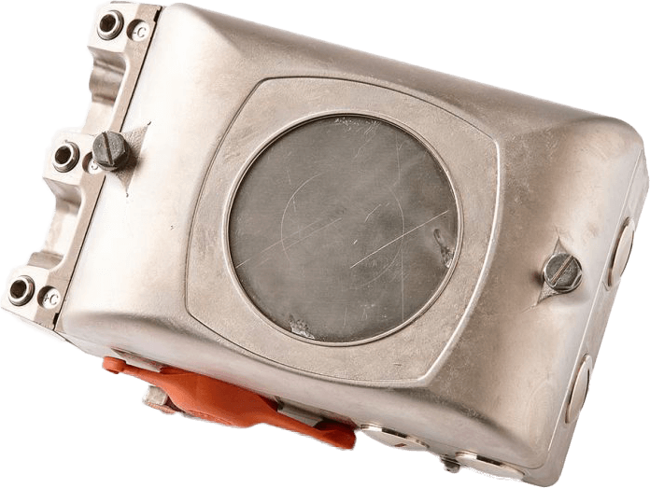

V200P Extra High Temperature Proof Positioner

Brand: Valve Accessories & Controls

Add Product to My Catalog

The new V200P EHT (Extra High Temp) is rated for service from -40 to 325 F, offering a wide range of temperature applications.

This pneumatic positioner is a very simple, force balance, spool valve positioner that not only handles high temperatures, but the NEMA 4X enclosed is very rugged, can be mounted in any quadrant, and handles vibration very well.

The special painting and high temp seals are selected for this product. The zero and span to the positioner can be accessed externally, so the cover doesn’t have to be removed for calibration.

The unique snap-in spindle (drive shaft) design offers versatile mounting to various actuator applications including rotary or linear actuators.

VAC mounting kits (many of which are in stock) allow for quick field mounting of this product to a wide range of actuator brands.

Features

All In One Housing
- This compact NEMA 4X valve positioner allows for an internal I/P, switches, 4/20 mA transmitter, all in one compact, rugged die-cast aluminum housing. The flexibility to add, remove, replace, and calibrate this unit is very user-friendly.
Calibration
- The ability to calibrate a positioner is important. Time can be money, and with the V200 positioner, calibration is made simple, easy, and NOT time-consuming. Both Zero and Span can be adjusted without removing the cover, and the single spring has very little interaction.
Complete Offering
- Being able to get all of the needed options from a single product can be a real benefit. For basic pneumatic to various Ip options (standard, IS, EX, FF, Gas approved, 0-10V) and adding valve position feedback into the one compact housing is a benefit. The flexibility of going from one type to the other in minutes saves time and money. Quality construction of each product equals accurate control and long service life.
Position Feedback
- As the need for valve position feedback grows, the V200 positioner allows for very accurate feedback options. From switches to 4/20 transmitter, these components fit very neatly and simply into the one NEMA 4X housing.
Accessories/Options
- The flexible mounting allows for mounting to many actuators, built in gauge block, various pilot assemblies, special cams, beacon indicator, and more are available from one source-one product.
