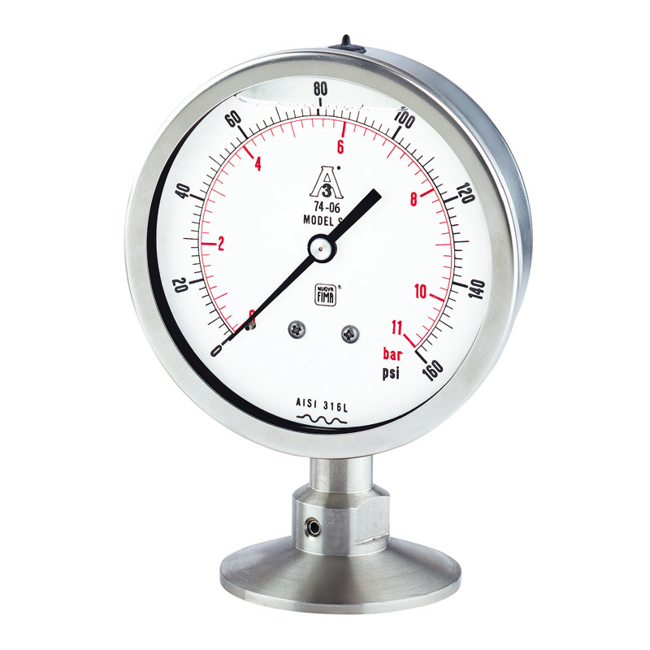

SP Sanitary Pressure Gauge

Brand: Nuova Fima

These instruments are designed for Sanitary, Food Process and Pharmaceutical Industries in compliance with standard n.74-06 of 3-A (Sanitary Standards Symbol Administrative Council).

The absence of interstices and the mirror finishing of the components assure the best hygiene.

The combination of pressure gauge and diaphragm seal allow to reduce the inner volumes and temperature error.

To reduce the effects of severe working conditions like vibrations and pulsations, the instruments can be filled.

Specifications

Brand

Accuracy

  • Liquid Fillable: Grade A as Per ASME B40.1 (2-1-2 %) for DS 4” (100 mm)
  • Liquid Fillable: Grade B as Per ASME B40.1 (3-2-3 %) for DS 2.5” (63 mm)

Ambient Temperature Range

  • Liquid Fillable: -13° to +149° F (-25° to +65° C)
  • Liquid Filled: +32° to +149° F (0° to +65° C)

Blow Out Vent & Filling Plug

  • Autoclavable: Viton

Case

  • Liquid Fillable: Electro-Polished AISI 304 Stainless Steel

Case Filling

  • Liquid Filled: Glycerine 99,5 % (USP, E.P. E F.U.) for Food Service

Design

  • Liquid Fillable: 74-06 SSI, ASME B40.1

Dial

  • Liquid Fillable: Aluminum Black Anodized
  • Liquid Fillable: Aluminum, White with Black Markings

Diaphragm

  • Liquid Fillable: AISI 316L Stainless Steel

Gasket

  • Autoclavable: Silicon Rubber

IP Protection Rating

  • Liquid Fillable: IP67 as Per EN 60529 / IEC 529

Pointer

  • Liquid Fillable: Aluminum Black Anodized

Process Connection

  • Liquid Fillable: AISI 316L Stainless Steel with Finishing Ra ≤ 0,76 μm (Welded Parts Included), as Per ASME BPE SF3

Process Temperature

  • Liquid Fillable: -4° to +212° F (-20° to +100° C)
  • Liquid Fillable: Max.

Ranges

  • Liquid Fillable: from 0 to 15 psi to 0 to 600 psi, (From 0 to 1 bar to 0 to 40 bar or Equivalent Units)

Ring

  • Liquid Fillable: Polished AISI 304 Stainless Steel, Crimped

Seal Fill

  • Liquid Fillable: Mineral Oil (FDA Approved) for Food Service

Welding

  • Liquid Fillable: AISI 316L TIG

Window Material

  • Autoclavable: Polysulfone
  • Liquid Fillable: Plastic on DS 2.5” (63 mm)
  • Liquid Fillable: Tempered Glass on DS 4” (100 mm)

Working Pressure (Referred to the Full Scale Value)

  • Liquid Fillable: Max.
