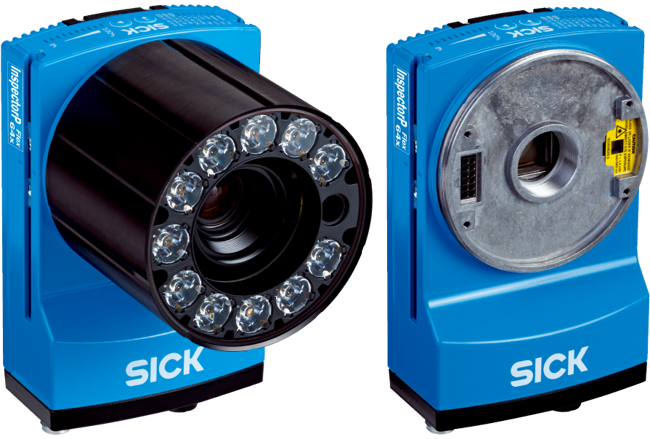

InspectorP65x 2D Machine Vision
Brand: Sick AGThe InspectorP65x is an industrial programmable and configurable 2D vision camera for long-range and high-resolution vision tasks. Boasting image resolutions of 2-4 megapixels, an IP 65 housing, and a flexible high-end optical design,
it is perfectly equipped to meet demanding automation environments. The application software is fully flexible thanks to the SICK AppSpace development environment, with image processing powered by HALCON and SICK Algorithm Library.
At a glance
- 2D vision sensors with 2.1 and 4.2 megapixels
- Configuration of SensorApps in a web browser
- Programming of new SensorApps in SICK AppStudio
- Flexible C-mount lenses and integrated illumination
- Laser alignment aid, beeper and feedback spot
- Includes HALCON runtime license and SICK Algorithm Library
- Flexible optical design and high-power lighting enable long-distance and large FOV setups
- Easy start for anyone with the pre-installed Quality Inspection SensorApp
- Fast, high-resolution programmable 2D cameras ensure maximum performance
- Unique operator interaction possibilities thanks to powerful set of convenience features
- Addition or extension of tool functionality for customized solutions with SICK Nova
- Exceptional programming flexibility in SICK AppSpace or HALCON
- Deep learning available as licensed option
1 - 4 of 4 Part Numbers
1082303
- Internal Lighting - To Be Ordered Separately As Accessories
- Sensor Resolution - 2,048 px x 1,088 px (2.1 Mpixel)
- Optical Focus - Adjustable Focus
- Type - V2D652P-2MCXXA6*
1082304
- Internal Lighting - To Be Ordered Separately As Accessories
- Sensor Resolution - 2,048 px x 2,048 px (4.2 Mpixel)
- Optical Focus - Adjustable Focus
- Type - V2D654P-2MCXXA6*
1082305
- Internal Lighting - White, Blue
- Sensor Resolution - 2,048 px x 1,088 px (2.1 Mpixel)
- Optical Focus - Dynamic Focus Control
- Type - V2D652P-2MEWHA6
1082306
- Internal Lighting - White, Blue
- Sensor Resolution - 2,048 px x 2,048 px (4.2 Mpixel)
- Optical Focus - Dynamic Focus Control
- Type - V2D654P-2MEWHA6
1 - 4 of 4 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- EAC
Enclosure Rating
- IP65
Sensor
- CMOS Matrix Sensor, Grayscale Values
Sensor Resolution
- 2,048 px x 1,088 px (2.1 Mpixel)
- 2,048 px x 2,048 px (4.2 Mpixel)
Light Source
- Internal Lighting: to be Ordered Separately as Accessories LED, Visible, White, 6,000 K, ± 500 K
- Adjustment Aid: Laser, Visible, Red, 630 to 680 nm, LED, Visible, Blue, 455 nm, LED, Visible, Green, 525 nm, ± 15 nm, Laser, Visible, Red, 630 to 680 nm
Optical Focus
- Adjustable Focus / Dynamic Focus Control
Lens
- C-mount
Optical Format
- 1”
Operator Interface
- Web Server
Control Element
- 2 Buttons
Communication Interface
- Serial: RS-232, RS-422
- Ethernet, TCP/IP, FTP, HTTP
- CAN, SICK CAN Sensor Network (Master/Slave)
- EtherNet/IP
- PROFINET, PROFINET Single Port, PROFINET Dual Port (Optional via External Connection Module CDF600-2)
Configuration Software
- SICK AppStudio
Dimensions
- 142 mm x 90 mm x 46 mm
- 142.8 mm x 90 mm x 106.1 mm
- Robot picking
- Precise part positioning
- Quality inspection of shapes and dimensions
- Defect and part presence detection
- Calibrated, high-accuracy measurements
- Track and trace by code reading and OCR
- Object sorting
