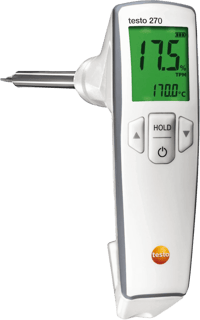

Testo 270 - Cooking Oil Tester
Brand: Testo
Reliably optimize the use of cooking oil to save costs and ensure brand protection.
The Testo 270 cooking oil tester quickly, easily, and reliably determines cooking oil quality.
The new Testo 270 cooking oil tester stands out thanks to its ergonomic design, which protects the hand from direct exposure to hot oil.
The clear alarm via the colored backlit display makes it even easier to evaluate the cooking oil quality: Green means the TPM content is OK. Orange: TPM value is borderline. Red: Your TPM limit has been exceeded.
The Testo 270 cooking oil tester measures Total Polar Material (TPM) content in the oil and displays this as a percentage.
As the oil is used, TPM increases. For every deep fried food, there is a point where overused oil will compromise the cooking oil quality and taste and presentation of that food.
Measuring the %TPM level assures that the quality of the oil is optimized without fear of endangering the brand.
In addition to this, a %TPM reading of greater than 24 can cause health concerns.
Regular measurement with the Testo 270 can prevent this.
The use of the cooking oil tester also prevents changing the oil too soon, thus tossing away a very expensive commodity before you should.
The TPM limit values can also be individually defined, and can, like other instrument configurations, be protected from inadvertent configuration changes by a PIN.
Features- Oil quality assessment on site
- Capacitive oil sensor from Testo, together with its needs-based design, make it possible to take measurements in hot oil (user is protected from the heat of the deep fat fryer)
- Protection class IP65 for cleaning under running water
- Measurement without consumables
- On-site calibration using the reference oil
- Ergonomic design means a safe grip
Specifications
Brand
Delivery Scope
- Testo 270 Cooking Oil Tester in a case, with Short Instructions, Full Instruction Manual and Training Card, as well as Certificate of Conformity and Batteries
- Please Note: Reference Oil for the Testo 270 Cooking Oil Tester is available Separately (Part Number 0554 2650)
Operating Humidity
- 0 to +90 % RH
Weight
- 9 oz. / 255 g
Reaction Time
- Approx. 30 sec
Dimensions
- 6.7 x 2.0 x 11.8 in. / 170 x 50 x 300 mm
Operating Temperature
- 32° to 122° F / 0° to +50° C
Housing
- ABS / ABS-PC Fibre Glass 10 %
Protection Class
- IP65
Product Colour
- White
Authorizations
- CE 2014/30/EU
Length Probe Shaft
- 6.89 in. / 175 mm
Length Probe Shaft Tip
- 1.378 in. / 35 mm
Diameter Probe Shaft
- 0.433 in. / 11 mm
Diameter Probe Shaft Tip
- 0.394 in. / 10 mm
Alarm Features
- Upper and Lower TPM limit value freely Adjustable, Visual Alarm via 3-colour Display Backlighting (Green, Orange, Red), values and Illumination Flash in the Display until the Measurement is ended (Auto Hold)
Battery Type
- 2 AAA Batteries 1.5 V (LR03)
Battery Life
- at 68° F approx. 25 h Continuous Operation (Corresponds to approx. 500 measurements), without display lighting
Display Type
- LCD
Display Size
- 2 lines
Display Lighting
- Backlite
Storage Temperature
- -4° to 158° F / -20° to +70° C
Application Temperature
- 104° to 392° F / +40° to +200° C
TPM - Capacitive
- Measuring Range: 0.0 to 40.0 % TPM
- Accuracy: ± 2 % TPM (104° to 374° F) / ± 2 % TPM (+40° to +190° C)**
- ** Typically, based on Testo in-house Reference, at an Ambient Temperature of 77° F
- Resolution: 0.5 % TPM (104° to 374° F) / 0.5 % TPM (+40° to +190° C)
Temperature - PTC
- Measuring Range: 104° to 392° F / +40° to +200° C
- Accuracy: ± 2.7° F / ± 1.5° C
- Resolution: 0.1° F / 0.1° C
