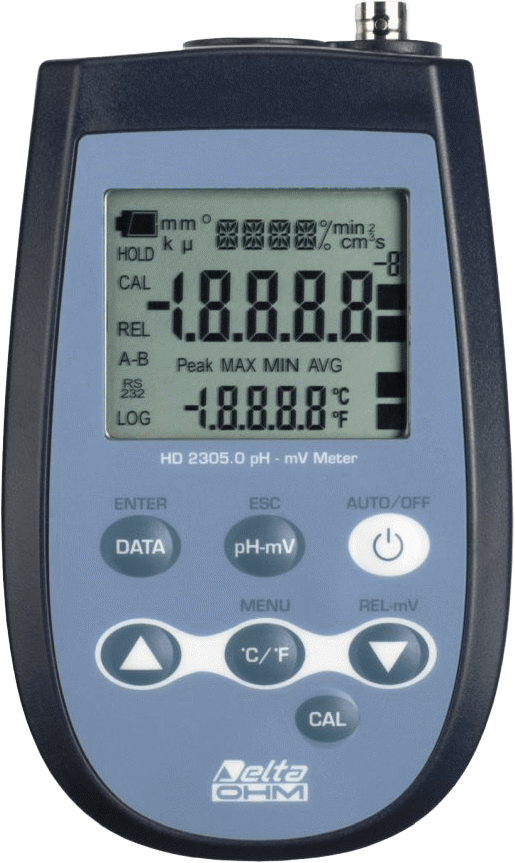

HD2305.0 – pHmeter-Thermometer
Brand: Delta OHM S.R.L.
pHmeter-Thermometer which measures pH, mV and temperature.
Storage of maximum, minimum, average value. Functions: REL, HOLD and auto power off which can be disabled, IP 67 protection degree.
Complete with carrying case, instruction manual, 3 batteries.
Electrodes, calibration solutions and temperature probes TP87 and TP47 series with SICRAM module have to be ordered separately.
Specifications
Brand
Measurement Range
- -1999.9 to +1999.9 mV
Resolution
- 0.1 mV
Accuracy
- ± 0.1 mV ± 1digit
Drift After 1 Year
- 0.5 mV/year
Pt100/1000 Measurement Range
- -200 to +650° C
Measured Quantities
- pH
- mV
- °C
- °F
Batteries
- Three 1.5 V type AA batteries
Autonomy
- 200 hours with 1800 mAh alkaline batteries
Input Module for Temperature Probes
- 8-Pole Male DIN 45326 Connector
pH/mV Input
- Female BNC
Power Absorbed with Instrument Off
- < 20 μA
Operating Temperature
- -5° to 50° C
Storage Temperature
- -25° to 65° C
Working Relative Humidity
- 0 to 90 % RH without condensation
Protection Degree
- IP66
Dimensions (Length x Width x Height)
- 140 x 88 x 38 mm
Weight
- 160 g (complete with batteries)
Materials
- ABS
Display
- 2 x 4-1/2 digits plus symbols, Visible area: 52 x 42 mm
