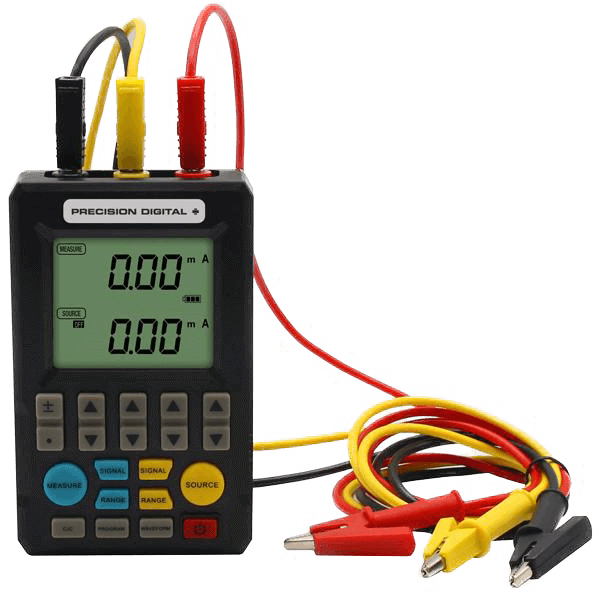

PD9501 Multi-Function Calibrator

Brand: Precision Digital Corporation
Add Product to My Catalog

This PD9501 Multi-Function Calibrator has a variety of signal measurement and output functions, including voltage, current, thermocouple, and RTD.
Features
  • Measure and Source T/Cs, RTDs, Ohms, Current, Voltage
  • Compact and Lightweight
  • Battery or USB Powered
  • Descriptive LCD Display
  • 24 V Power to Drive the Transmitter
  • Auto Stepping and Auto Ramping
  • Selective Auto Off Mode
  • LCD Includes an LED Backlight

1 - 1 of 1 Part Numbers
PD9501
PD9501
Multi-Function Calibrator
  • Outputs: 4-20 mA, 0-10 V, Thermocouple, RTD, Ohms
  • Power: Internal Rechargeable Lithium Ion Battery: Non-replaceable or External USB Power
1 - 1 of 1 Part Numbers

Specifications

Brand

Operating Temperature

  • 15° to 130° F
  • -10° to 55° C

Storage Temperature

  • 5° to 158° F
  • -20° to 70° C

Relative Humidity

  • 20 to 80 %

External Dimensions

  • 4.5” x 2.8” x 1.1”
  • 114 mm x 71 mm x 28 mm
  • H x W x D

Weight

  • 11.0 oz. / 312 g
  • With batteries: 14.0 oz. / 397 g

Power

  • Four AAA Batteries or External USB Power

Power Dissipation

  • 300 mA
  • 7-10 Hours

Reverse Connection and Overcurrent Protection

  • 30 V

Cables Provided

  • Three Signal Cables

Warranty

  • 1 Year

Documentation

User Guide
