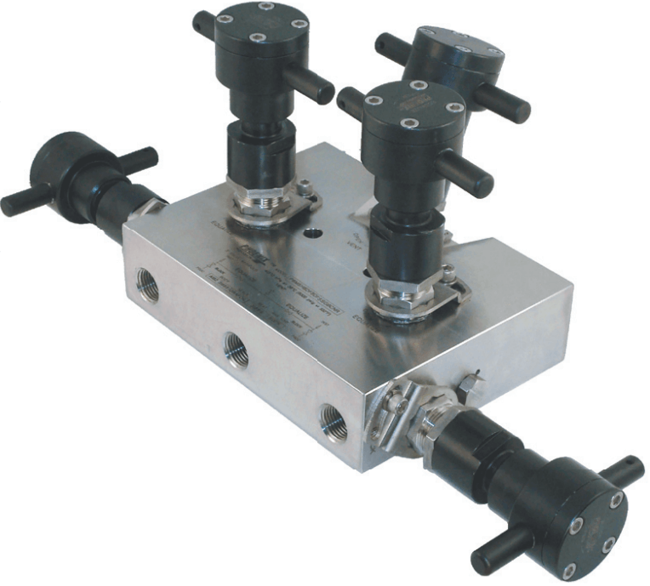

P6M5H-NR 5-Valve Severe Service Manifold
Brand: Phoenix PrecisionThe 5-valve manifold features 2 isolation valves, 2 equalizer valves, and 1 vent valve in a single body for isolation and calibration of differential pressure transmitters.
The manifold bonnets are configured with large severe service handles for easy operation.
Additional features include a body manufactured from extruded solid bar, robust non-rotating stems, and Parker’s innovative design which ensures a bubble tight seal in a variety of conditions.
All Parker valves are manufactured and designed in accordance with MSS-SP105.
Features- Hydrotested at 150% of rated pressure (shell test). Nitrogen gas tested to 2,000 psi
- Seat tightness (zero leakage) verified to 110% of rated pressure. Nitrogen gas tested to 2,000 psi
- High temperature/pressure qualification tests of design
- Metal body-to-bonnet seals are in compression, not tension. Bonnet design has additional top bonnet seal
- Integral 5-valve solid body
- Non-rotating stem design with 8 RMS finish
- Non-rotating Stem design with ceramic ball tip
- Grafoil™ packing (Teflon™ free)
- Pressure component materials sourced from the US, Canada or Europe
Specifications
Brand
Rating
- Up to 6000 psi @ 100 °F
Stem
- Sereve Service: Non-rotating ball tip
- Regular Service: Rotating ball tip
Packing
- Grafoil™
Bore Size
- 3/8"
Inlet Connections
- FNPT
- FNPTF
Outlet Connections
- FNPT
- FNPTF
