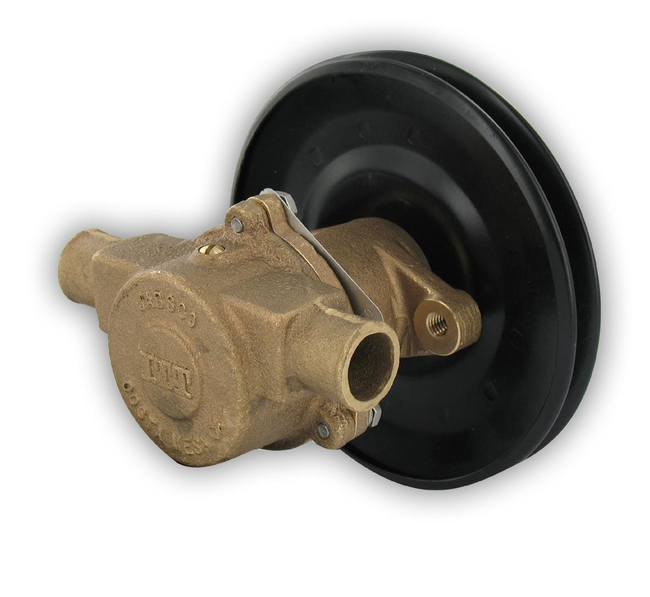

18840 Series Bracket Mount 1" Pump

Brand: Jabsco

Bronze flexible impeller engine cooling pump.
Features
  • Constructed from marine quality bronze and stainless steel for ruggedness and reliability
  • Easy to service and maintain
  • Alternator mount
  • Pulley Drive

1 - 2 of 2 Part Numbers
18840-0010
18840-0010
18840 Bracket Mount 1" Pump
  • Includes 6-1/2" “A” Belt Pulley
18840-1010
18840-1010
18840 Bracket Mount 1" Pump
  • Includes 6-1/2" “A” Belt Pulley and High Pressure Impeller
  • If system discharge pressures range between 15-25 psi, Model 18840-1010 is recommended to maintain flow.
1 - 2 of 2 Part Numbers

Specifications

Brand

Bearings

  • Twin Single Row, Ball Typical

Body Material

  • Bronze

Impeller

  • Neoprene

Port Type

  • 1” (25 mm) I.D. Hose

Seal

  • Carbon / Ceramic Mechanical Typical

Shaft Material

  • Stainless Steel

Wearplate

  • Not Fitted

Weight

  • 3.2 kg (7 lbs)

Flow Rate

  • Nominal 40 Litres/min (8.9 gallons/min) at 1500 rpm

Self-Priming

  • From Dry Up to 2.4 m (7.8 ft)

  • Marine Engine Cooling
