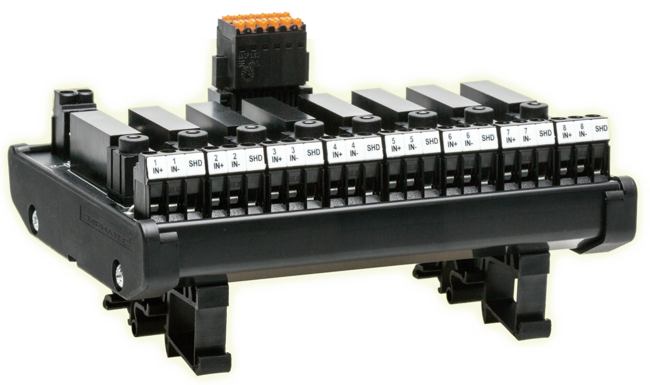

INSTALINK-CLIx-8 8-Channel Loop Isolator.png

INSTALINK-CLIx/8 8-Channel Loop Isolator

Brand: Emphatec
Add Product to My Catalog

The INSTALINK-CLIx/8 was designed for use with PLC or DCS Analog input cards, such as the Controllogix 1756-IF8. Up to 8 transmitters are connected to the inputs and a cable is available for quick connection to the PLC card.

The module provides terminals for cable shields as well as a makebefore-break test jack on each input. These allow quick and easy insertion of an ammeter into each input during troubleshooting, commissioning or calibration.

Transformer coupling means the output is powered from the input - no power suppy is required in the output circuit. It provides fast response time and excellent accuracy.
Features
  •  Designed for use with PLC/DCS 8 channel input cards

  •  Make-before-break test jack on each input

  •  Grounded shield terminal on each input

    • Specifications

    Brand

    Accuracy

    • 0.03 % at 25° C, 250 W Load
    • 0.1 % at 25° C, 10 W Load

    Approvals & Certifications

    • UL

    Input

    • 4-20 mA

    Isolation

    • Isolation: 3 kV for 1 Minute Input-Output, Input-Input, Output-Output Transformer Coupling

    Load Resistance

    • Output Load: 250 ohms, Max.

    Mounting

    • 32 mm & 35 mm DIN Rails

    Operating Temperature

    • -20° to 40° C (-4° to 104° F)

    Output

    • 4-20 mA

    Response Time

    • 20 milliseconds

    Termination

    • 26 to 12 AWG

    Torque

    • 0.5 to 0.6 Nm

    Voltage Drop

    • Input Voltage Drop: 2.4 V at 4 mA
    • Input Voltage Drop: 8.7 V at 20 mA
