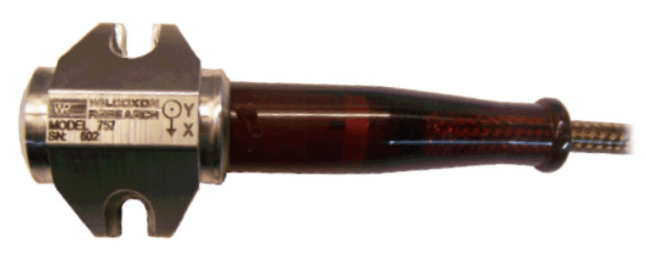

Model 757 Biaxial Low Profile UnderWater Accelerometer
Brand: Wilcoxon Sensing TechnologiesBiaxial, low-profile, side-exit, 10 feet integral J81S stainless steel overbraided cable, case isolated, 100 mV/g underwater accelerometer.
Features- Hermetic seal
- 650 psi rating
- Stainless steel overbraid integral cable
- Rugged 316L stainless steel case
- Low-profile mounting
Specifications
Cable Material
- Stainless Steel Braid
Electrical Connectors
- Cable (J81S, 10 ft)
Enclosure, Body Material
- 316L Stainless Steel
Frequency
- Both Channels, ± 10 %: 2 to 2,000 Hz
Mounting
- Two 10-32 x 7/16 SHCS on 1.125 Bolt Circle
Noise
- Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 100 µg
- Electrical Noise, Equivalent G, Nominal (Spectral: 1,000 Hz): 0.5 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 1 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1 %
Output Impedence
- Maximum 100 Ω
Power Requirement
- 18-30 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range: 50 G Peak
Sensitivity
- Base Strain Sensitivity: 0.002 G/μstrain
- Sensitivity, ± 10 %, 25° C (77° F): 100 mV/g
- Transverse Sensitivity: Max. 5 % of axial
Shock
- Shock Limit: 5,000 G Peak
Static Pressure
- Hydrostatic Pressure, Max.
Temperature Range
- -50° to 80° C (-58° to 176° F)
Vibration
- Vibration Limit: 500 G Peak
Voltage
- Bias Output Voltage, Nominal: 12 Vdc
