Features

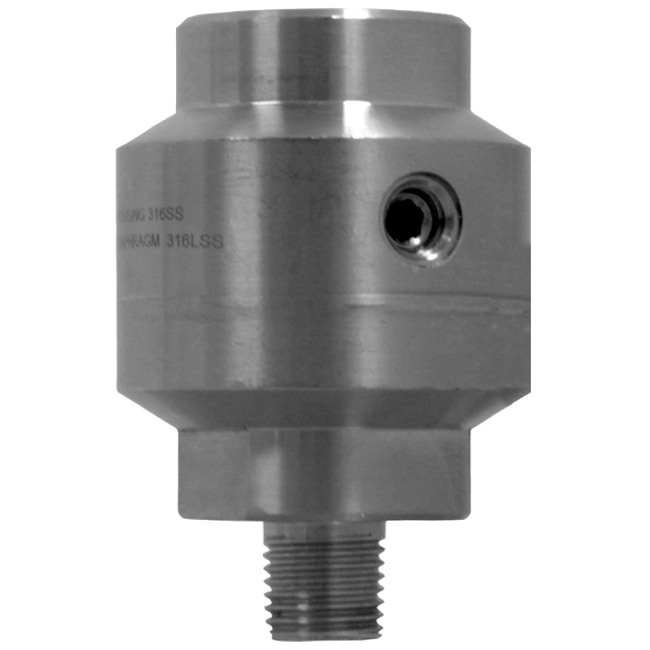

  • Compact (one piece), lightweight and economical
  • ASME B40.100 compliant
  • CRN registered

Specifications

Approvals & Certifications

  • CRN
  • RoHS

Diaphragm Material

  • AISI 316L Stainless Steel, Welded

Enclosure, Body Material

  • 316 Stainless Steel

Fill Material

  • Silicone

Gauge Connection

  • 1/2” NPT Female
  • 1/4” NPT Female

NPT Connection

  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male

Operating Pressure

  • psi: 15 to 1,000 (kPa: 105 to 6,900, bar: 1.05 to 69)

Pressure Range

  • bar: 1.05 to 69
  • kPa: 105 to 6,900
  • psi: 15 to 1,000

Process Temperature

  • -45° to 150° C (-49° to 302° F)

  • Ideally Suited for Applications Where Space Limitations Exist
  • Primarily Utilized to Protect Gauges and Transmitters From Corrosive Media
  • Utilized in Many OEM Applications
