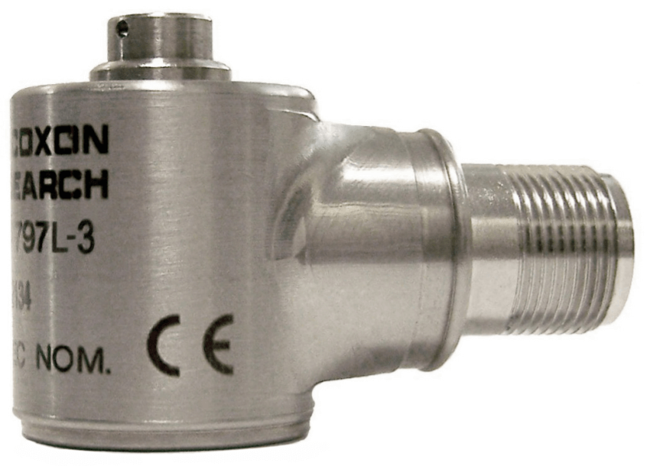

Model 797L-3 Low Profile Low-Frequency Industrial IsoRing Accelerometer
Brand: Wilcoxon Sensing TechnologiesSide exit, 2-pin MIL-C-5015 connector, case isolated, 200 mV/g low frequency accelerometer.
Features- High sensitivity
- Ultra low-noise electronics for clear signals at very low vibration levels
- Low frequency capable
- Hermetically sealed
- ESD protection
- Reverse wiring protection
Specifications
Approvals & Certifications
- CE
Electrical Connectors
- Cable (J9T2, Two-Conductor Shielded, Tefzel Jacket, 30 PF/feet)
- Mating Connector: R6 Typical
- Output Connector: 2-Pin, MIL-C-5015 Style
Enclosure, Body Material
- 316L Stainless Steel
Frequency
- Frequency Response, Nominal (± 10 %): 0.4 to 2,500 Hz
- Frequency Response, Nominal (± 3 dB): 0.2 to 5,000 Hz
- Frequency Response, Nominal (± 5 %): 0.6 to 1,700 Hz
- Resonance Frequency: 18 kHz
Mounting
- 1/4-28 Captive Screw Mount
Noise
- Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 12 µg
- Electrical Noise, Equivalent G, Nominal (Spectral: 1,000 Hz): 0.2 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 2.0 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 0.6 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1 %
Output Impedence
- Maximum 100 Ω
Power Requirement
- 18-30 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range: 25 G Peak
Seal Type
- Hermetic
Sensitivity
- Base Strain Sensitivity: 0.001 G/μstrain
- Electromagnetic Sensitivity, Equivalent G: 5 µg/Gauss
- Sensitivity, ± 5 %, 25° C (77° F): 200 mV/g
- Transverse Sensitivity: Max. 7 % of axial
Shock
- Shock Limit: 2,500 G Peak
Temperature Range
- -50° to 120° C (-58° to 248° F)
Vibration
- Vibration Limit: 250 G Peak
Voltage
- Bias Output Voltage: 10 Vdc
