Pribusin Remote Control Signal Interface, RCI-100-RF9

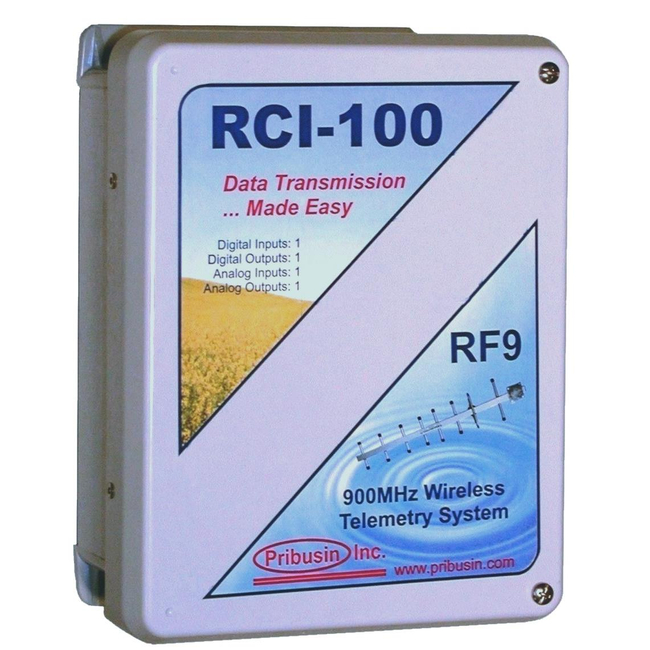

RCI-100-RF9 Remote Control Signal Interface

Brand: Pribusin, Inc
Add Product to My Catalog

The RCI-100-RF9 is a bi-directional signal communication system that exchanges 1 analog (0-20mA) and 1 dry contact inputs between a master and a remote unit. A complete system consists of one master station and one remote station each with 1 analog inputs, 1 analog outputs, 1 dry contact inputs and 1 'C' relay contact outputs. This means that signals can be retrieved from the remote site for monitoring purposes and that signals can be sent to the remote site for direct control functions.

The wireless communication is via license-free (in USA and CANADA) 900MHz Spread Spectrum Radio using channel hopping technology for greater reliability. Line-of-Sight ranges of up to 12 miles can be achieved with these radios.

The RCI-100-RF9 may also be used as a remote in a multi-remote system where 1, 2, 4 or 8 remote units at different sites may communicate with one central master. The
Features
  • Bi-directional Communication using License-free 900MHz Radio Band
  • Spread-Spectrum Radio Technology Provides Reliable Communication
  • Re-Transmission & Error Correction Algorithms ensure Accurate Data Transmission
  • 1 Dry Contact and 1 Analog Input
  • 1 'C' Relay Contact and 1 Analog Output
  • Point-to-Point or Host-to-Multipoint Topologies
  • No Calibration Required
  • Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24 VDC)
  • High Noise Rejection

Specifications

Brand

Approvals & Certifications

  • CSA C22.2 No. 60950-1-07
  • ETL 3118354: UL 60950-1-2007

Enclosure

  • NEMA 4X (NEMA 12 Available as an Option)

Media

  • 900 MHz Spread-Spectrum Radio

Operating Temperature

  • -4° to +140° F (-20° to +60° C)

Power

  • 117 Vac, 60/50 Hz, 24 Vdc Available

Protocol

  • Modbus ASCII, 9600 BAUD

Radio Power Output

  • 100 mW, 1 W (Selectable)

Range

  • Up to 12 Miles Line-of-Sight with Directional Antenna
  • Up to 1500 feet Indoors with Omnidirectional Antenna

Relay Contacts

  • 10 A 1/8 hp @ 125 Vac, 6 A 1/8 hp @ 277 Vac

RF Connector

  • N-Female (Bottom of Enclosure)
