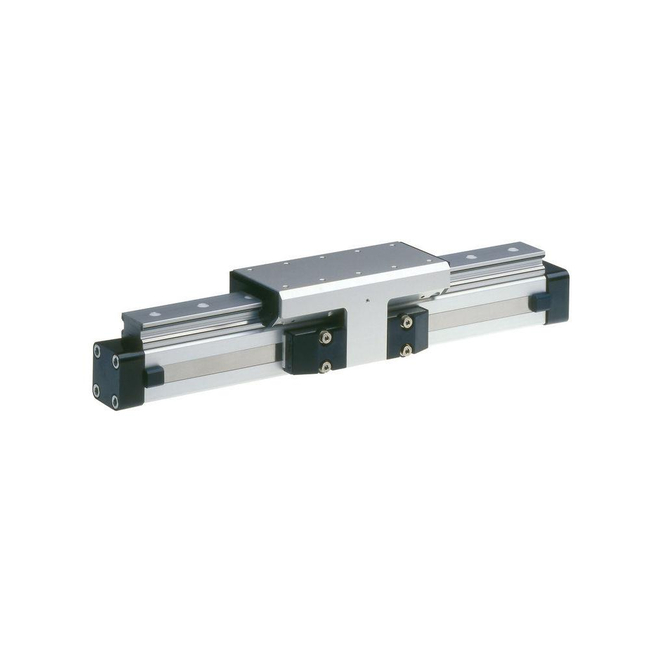

OSPE25-ST Trapezoidal Screw Driven, PROLINE Roller Guide, Rodless Electric Linear Actuator
Brand: Parker HannifinThe PROLINE roller guide option OSPE25-ST screw driven electric linear actuator is designed for low-speed and medium thrust applications for duty cycles under 10%.
With a trapezoidal screw that prevents the ability to back drive the unit making it ideal for vertical applications within transfer handling operations, industrial, manufacturing and assembly environments.
Features- Lead screw driven actuator for smooth speed and economic point to point positioning
- Self-locking lead screw for safe horizontal and vertical applications
- Precise aluminum roller guide for high loads and speed
- Smooth operation offering low noise operation
- Integrated seal strip offering IP54 protection
- Pre-configured motor and gearhead mounting kits for simplified installation
- Contactless sensing for positional feedback
Specifications
Brand
Additional Protection Option
- Steel Strip Cover
Approvals & Certifications
- Cleanroom Certified (Custom Option)
Bearing Type
- PROLINE Roller Guide
Corrosion Resistant Option
- No
Drive Type
- Leadscrew
Idler Unit Option
- No
Linear Feedback Device
- No
Maximum Acceleration (Inch/S2)
- 77.3
Maximum Acceleration (m/S2)
- 2
Maximum Payload FZ (N)
- 986
Maximum Speed (inch/sec)
- 3.9
Maximum Speed (m/sec)
- 0.1
Maximum Stroke (inch)
- 43
Maximum Stroke (mm)
- 1100
Maximum Thrust FX (Lbs)
- 135
Maximum Thrust FX (N)
- 600
Position Repeatability (± Inch)
- 0.02
Position Repeatability (± mm)
- 0.5
Profile Width (mm)
- 41
Series
- OSP-E
Typical Payload FZ (N)
- 100 - 986
- Factory Automation
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Packaging Machinery
- Printing and Marking Equipment
- Vehicle Assembly Facilities
