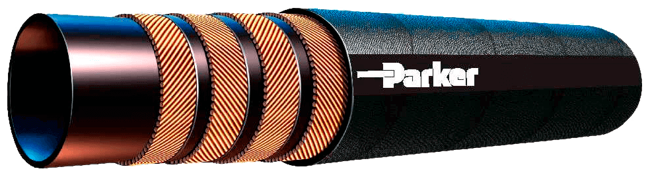

Oil Field Hose Slim Hole Hose (3000 psi)

Brand: Parker Hannifin

Slim hole hose is Parker proprietary design to meet the international standards hose manufactured to strict international quality specifications in order to provide consistency of performance.

Designed with a universal construction to meet global industry standards.

It offers a long service life and a wide range of fluid compatibility.

Its a constant pressure 3000 PSI hose.
Features
  • Hose with 4 wire spiral reinforcement & ozone resistant cover.
  • Long lasting & easy to handle.

Specifications

Applications

  • Oil Field

Hose I.D. (inch)

  • 2-1/2” - 4

Hose I.D. (mm)

  • 63.5 - 101.6

Hose I.D. (Size)

  • -40 to -64

Hose O.D. (inch)

  • 3.2 - 4.92

Hose O.D. (mm)

  • 81.3 - 125

Maximum Working Pressure (bar)

  • 207 - 138

Maximum Working Pressure (Mpa)

  • 20.7 - 13.8

Maximum Working Pressure (psi)

  • 3000 - 2000

Maximum Working Temperature (°C)

  • 121° C

Maximum Working Temperature (°F)

  • 250° F

Media

  • Hydraulic Fluids

Minimum Bend Radius (inch)

  • 30 - 59

Minimum Bend Radius (mm)

  • 762 - 1500 762 to 1500

Minimum Working Temperature (°C)

  • -40° C

Minimum Working Temperature (°F)

  • -40° F

Temperature Range (°C)

  • -40° to + 121° C

Weight (kg/m)

  • 6.7 - 8.85

Weight (Lbs/Ft)

  • 4.5 - 5.94

  • Off-Shore Applications & Hydraulic Rigs
  • Suitable For Petroleum Based Hydraulic Fluids
  • Synthetic Esters
  • Biodegradable Hydraulic Fluids
  • Water-Glycol Fluids
