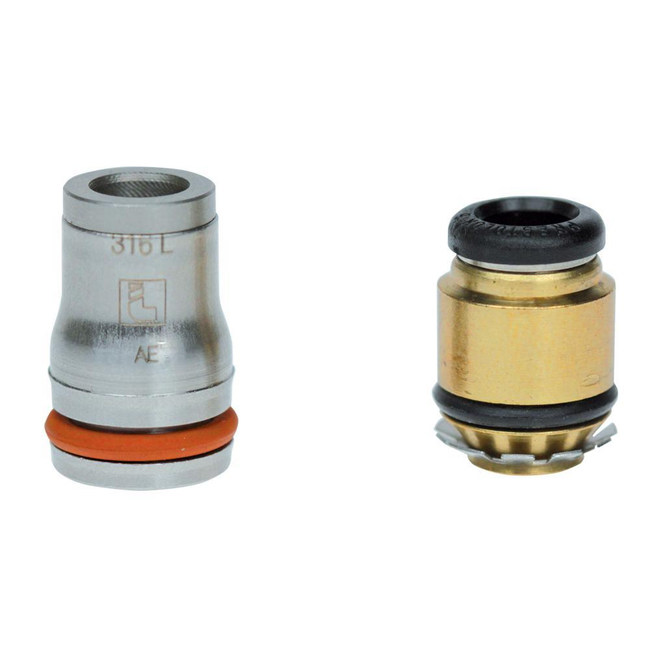

Metal Cartridges for Fluids and Gases
Brand: Legris - by ParkerFor full compatibility with many fluids and severe conditions (+150° C), Parker Legris has developed two types of patented cartridges. Using our metal cartridges allows for optimisation of installation configurations and for the FTL, the possibility of removal.
FeaturesLF Cartridges, LF 3600, LF 3800, LF 3900
- All the advantages of the LF 3600, LF 3800 and LF 3900 fittings applied to cartridge technology
- All-metal product to provide the greatest mechanical strength and chemical resistance
- Resistant at high temperatures (+150° C)
- Can be installed in either polymer or metal housings
FTL Cartridge
- Possibility to have several tubing diameters in the same cavity
- Visible retention and sealing system, can be disassembled using the dedicated tool
Specifications
Brand
Quantity Per Box
- 2 to 10
Media
- TL Cartridge: Compressed Air
- LF Cartridges: Fluids TL Cartridge: Compressed Air
Connection Type
- Push-to-Connect
Applications
- Various
- Vaccum
- Manufacturing Equipment
- Packaging
- Semiconductors
- Pneumatics
- Automotive Process
- Compressed Air / Inert Gas
Shape
- Straight
Maximum Working Temperature
- 150° C
- 302° F
Minimum Working Temperature
- -25° C
- -17° F
Weight
- 0.006 to 0.031 kg
Specifications Met
- LF 3600
- RoHS
- LF 3800: REACH
- FDA -- TL: REACH
Tube O.D.
- 4 to 14 mm
Materials of Construction
- 316 Stainless Steel, Rubber
- Brass
- Nickel-Plated Brass
Maximum Working Pressure
- 3 MPa
- 30 bar
- 435 psi
Vacuum Pressure Rating
- 755 mm-Hg
- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vacuum Applications
